DESCRIPTION
The MICRO LAMBDA X-Series oscillators are Low
Noise sources covering the various frequency bands for VSAT applications.
They are available in frequency bands to cover the entire Tri-Band range
of 4.2-14.2 Ghz, the C and X-Band frequency range of 4.6-8.9 Ghz and the
Ku-Band frequency range of 11.6-13.9 Ghz. These oscillators have been
specifically designed and ruggedized for superior microphonic performance
required by commercial and military environments. All units in this series
have specialized assembly and test processes to insure that the stringent
microphonic requirements are met. They are field proven in the latest
up and down converter designs currently being deployed. Unit sizes vary
depending on frequency requirements, from 1.25" cube to VXI/VME and come
with field replaceable SMA connectors.

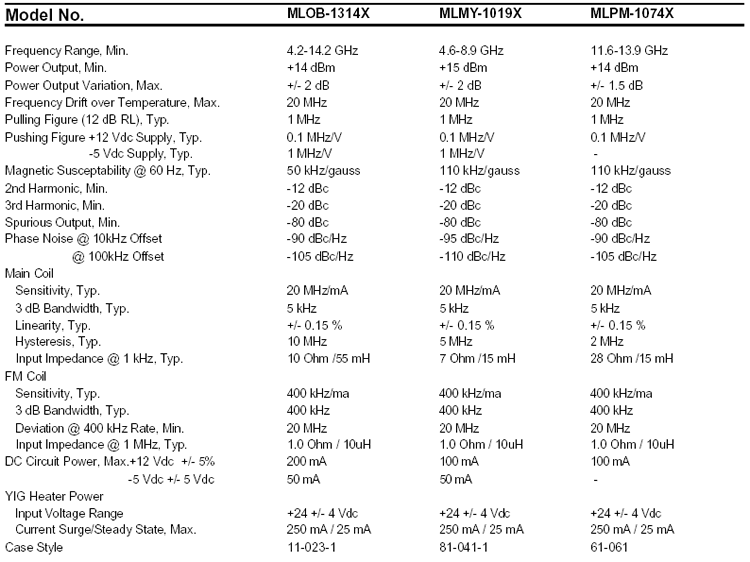

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –40º to +70º C Case Temperature
Micro Lambda Wireless, Inc. -
46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221
* Fax (510) 770-9213
PDF

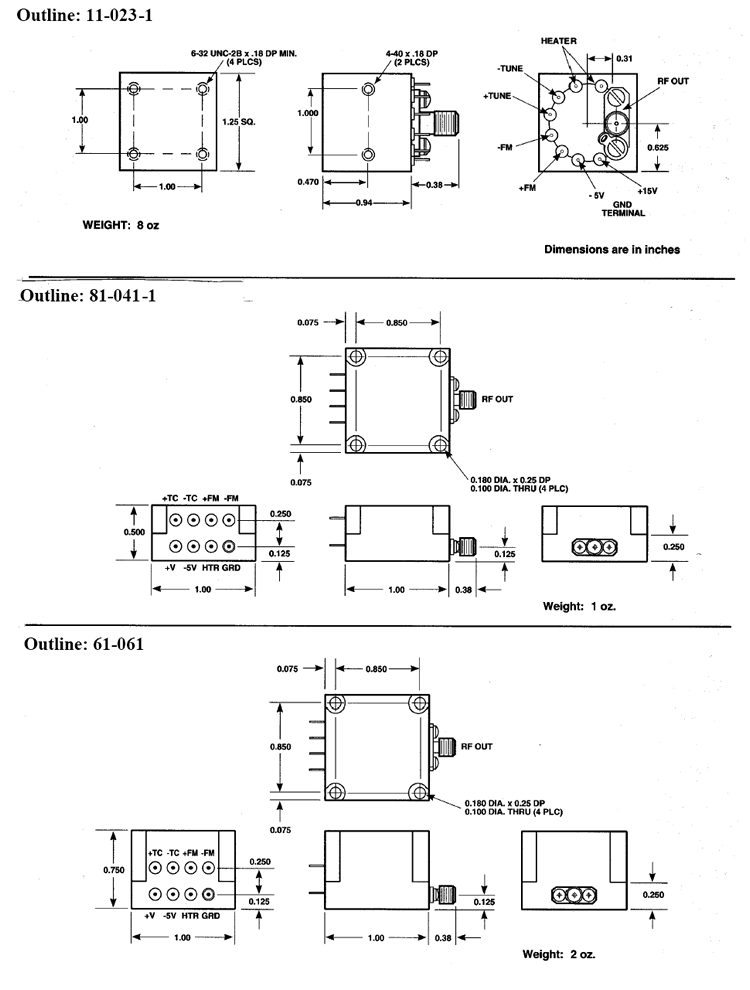

Format Data Sheet and Outline Drawing
