DESCRIPTION
The MLSN-Series of YIG-Based narrowband synthesizers are ideal as the main local oscillators
in receiving systems, frequency converters and various SATCOM and TELECOM applications.
This series of synthesizers provide 1 Hz frequency resolution over any 2 GHz frequency
range from 2 to 16 GHz. Power levels of +8 to +13 dBm (depending on frequency) are
standard through out the series. Spurious performance is –60 dBc and full band tuning speed
is 12 mSec. The units are 7” x 5” x 1” high and consume 17 watts. This series of synthesizers
utilizes a micro controller with non-volatile memory and up to 1,000 preset frequency commands.
Flexibility of the design yields options available to the user when specified.
These options include; dual RF outputs, second LO output and special external reference input.

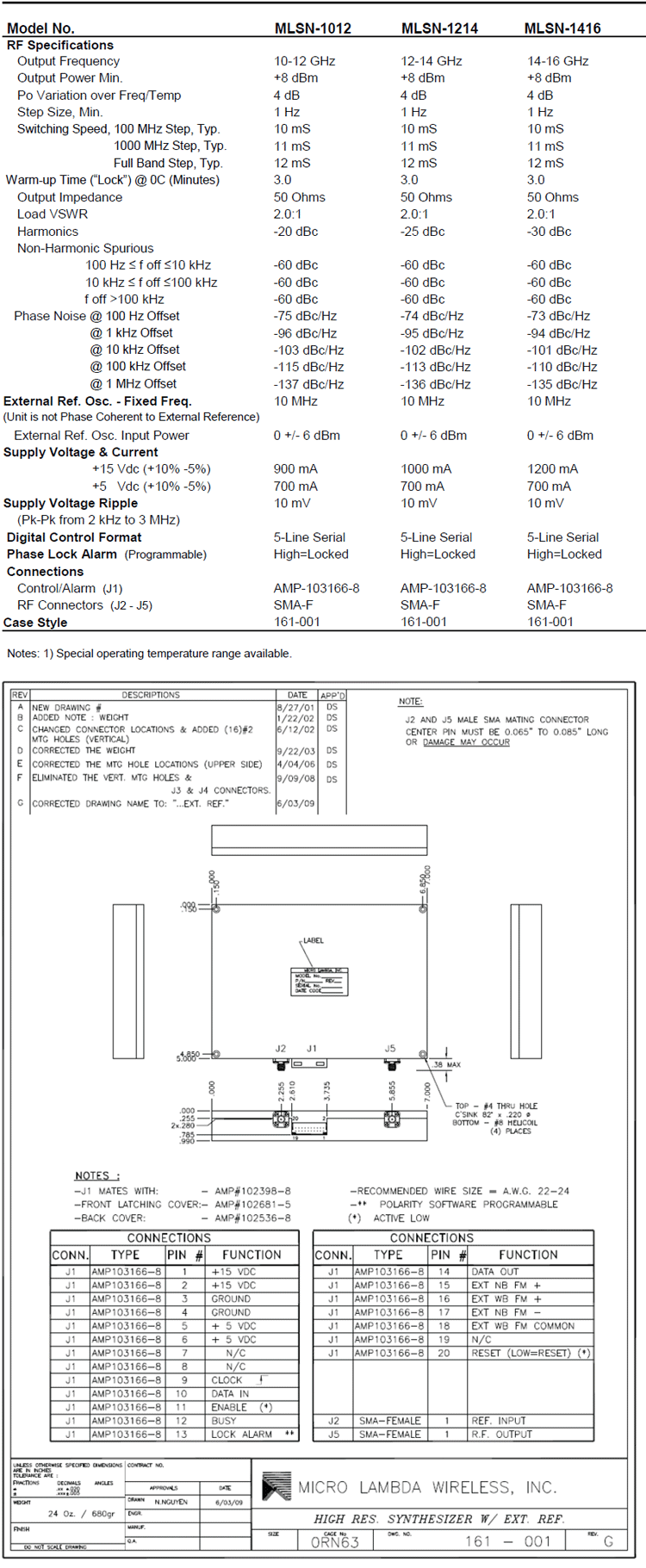

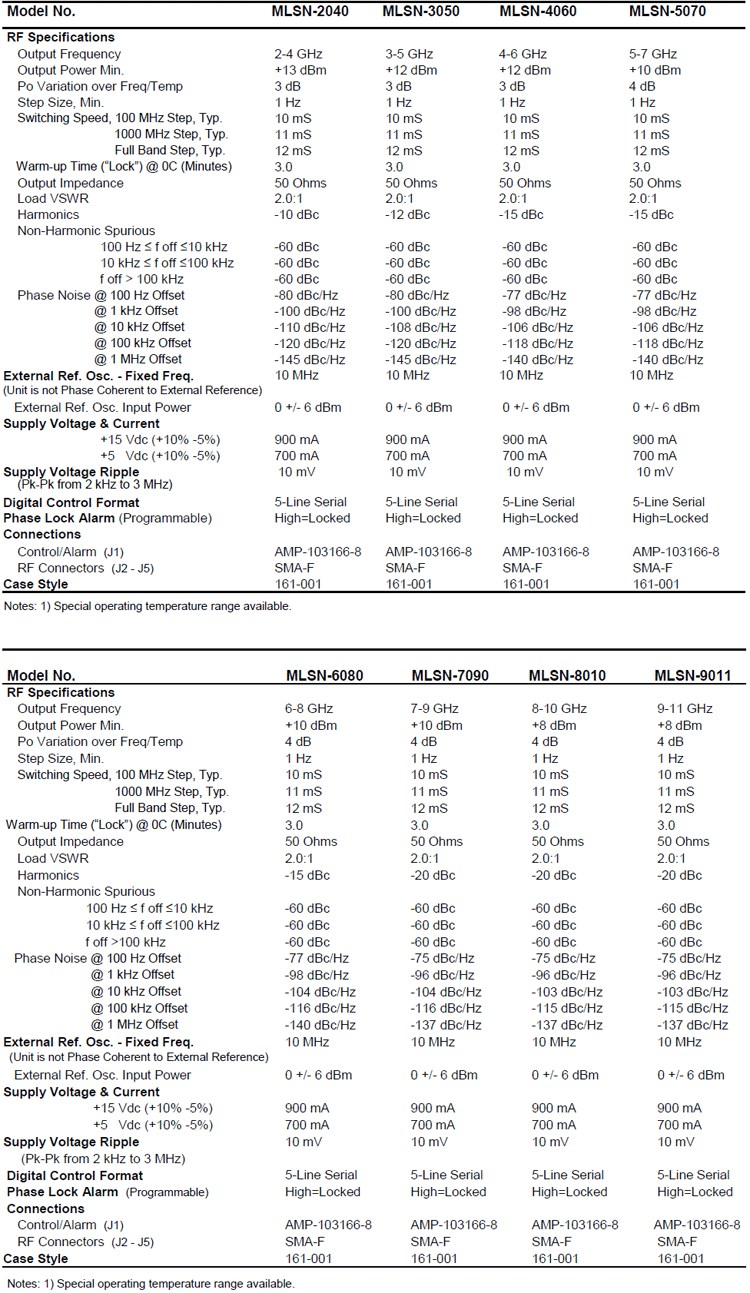

PERFORMANCE SPECIFICATIONS
(Operating Case Temperature: 0 º to +60º C
Baseplate) (Note 1)
Micro Lambda
Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone
(510) 770-9221 * Fax (510) 770-9213
PDF
Format Data Sheet and Outline Drawing
