MLSL “DO” SERIES PMYTO BASED SYNTHESIZERS 2-12 GHz           2 GHz TUNING
FEATURES
2-12 GHz Frequency Coverage 2 GHz Tuning Ranges Superior Phase Noise Small Size and Low Power Consumption Dual RF Output Ports

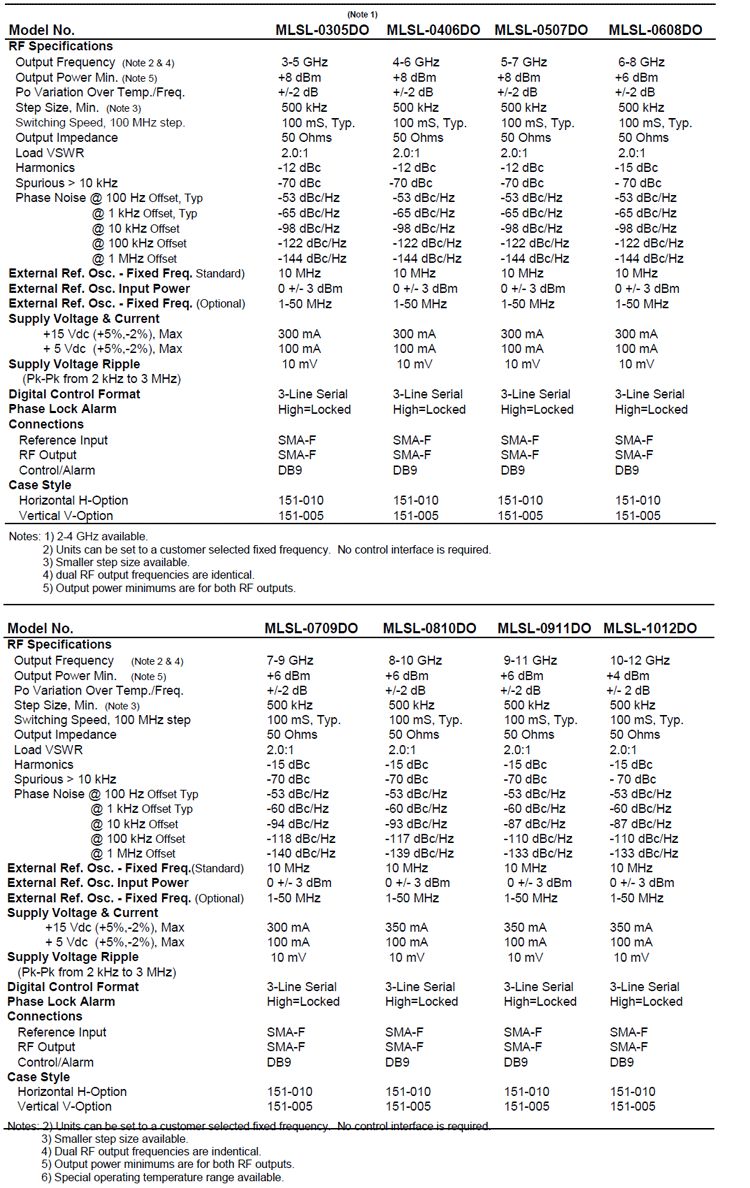

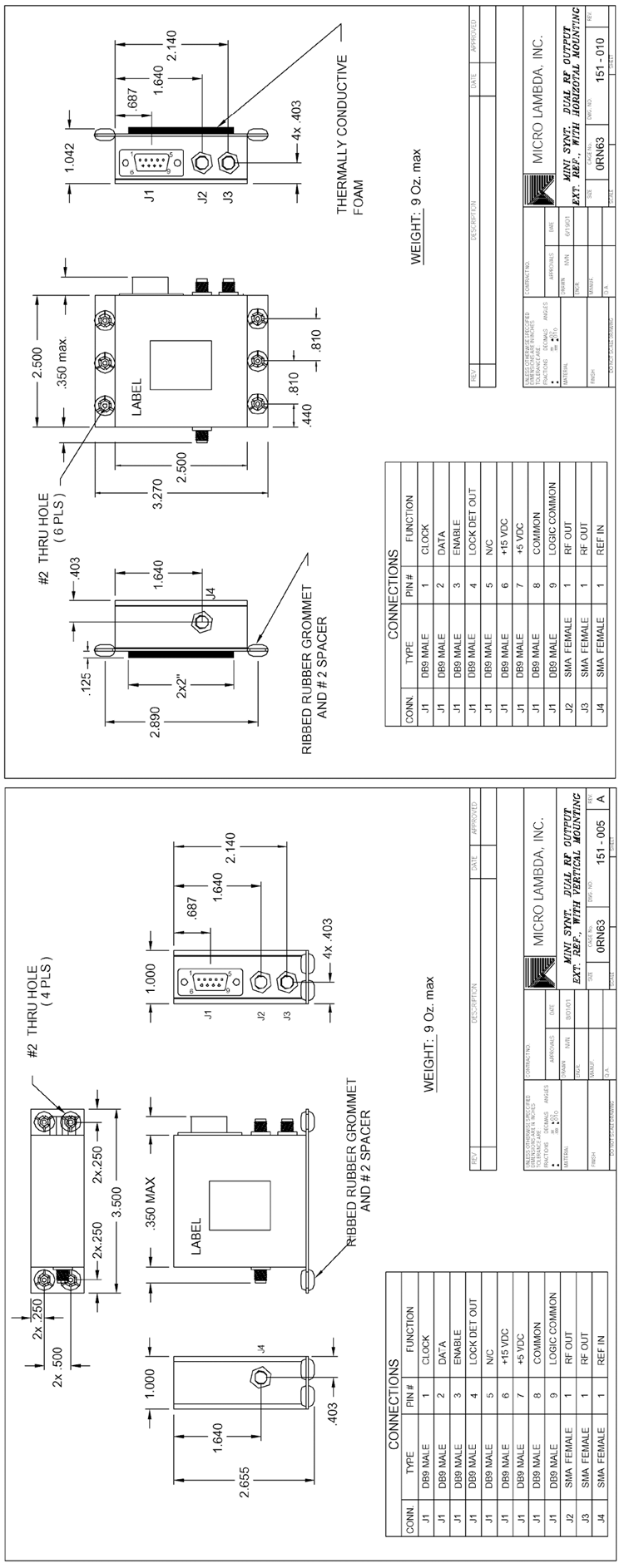

DESCRIPTION Micro Lambda’s new MLSL DO Series of permanent magnet YIG (PMYTO) based synthesizers utilize an internal power splitter giving two RF output ports. These synthesizers provide superior phase noise, typically –98 dBc/Hz @ 10 kHz offset, in X-Band and are available in 2 GHz tuning bandwidths between 2 GHz and 12 GHz. Frequency doublers are optional through 24 GHz. Spurious performance is -70 dBc and switching speed is 100 mS. Micro Lambda’s MLSL Series PMYTO based synthesizers are 2.5” x 2.5” x 1.0” and consume less than 6 watts. The micro-controller utilized in the MLSL synthesizers is non-volatile and remembers the tuned frequency after a power down incident. PERFORMANCE SPECIFICATIONS - DO Series (Operating Case Temperature: 0 º to +60 º C Baseplate) (Note 6) Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213 PDF Format Data Sheet and Outline Drawing Request for Quote Form
