| DESCRIPTION
The MLSW-Series of YIG-Based wideband synthesizers are ideal as the main local oscillators
in receiving systems, frequency converters and test and measurement equipment. Rivaling the
best lab-grade test equipment, they provide 1 Hz frequency resolution over the 600 MHz to 3
GHz, 2 to 8 GHz and 2 to 10 GHz frequency range. Power levels of +10 to +12 dBm are standard
through out the series. Spurious performance is –60 dBc and full band tuning speed is 13-18 mSec. The units are 7” x 5” x 1” high and consume 29 watts. This series of synthesizers
utilizes a micro controller with non-volatile memory and up to 1,000 preset frequency commands.
Flexibility of the design yields special options available to the user when specified.
These options include; dual RF outputs, second LO output and special external reference input.

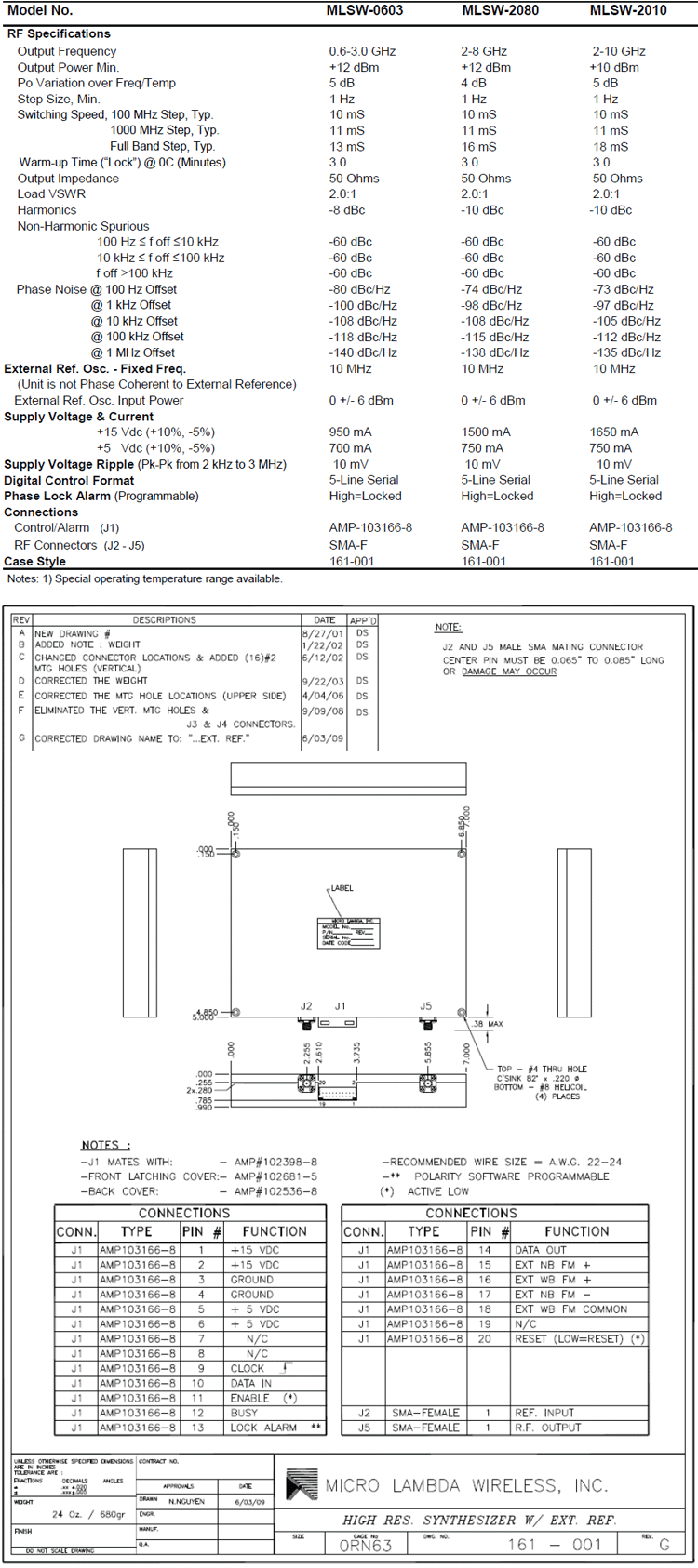

PERFORMANCE SPECIFICATIONS
(Operating Case Temperature: 0 º to +60º C Baseplate) (Note 1)
