DESCRIPTION
The MICRO LAMBDA MLFD-Series of Dual-Three stage YIG bandpass filters
offer excellent performance in a very small package size. They provide
low insertion loss, flat response over the frequency band and excellent
linearity. These filters offer the user, the ability to reduce the size
of current system designs while providing the option of inter-stage amplification.
The standard product line filters cover the frequency range of 0.5-18
GHz with 3 dB bandwidths from 20 to 30 MHz. They are specified with composite
specifications, but can be ordered with special 3 dB bandwidths for each
channel, including channel to channel frequency tracking. This miniature
line of filters are ideal for portable test sets, miniature receivers
and a variety of microwave test equipment applications.

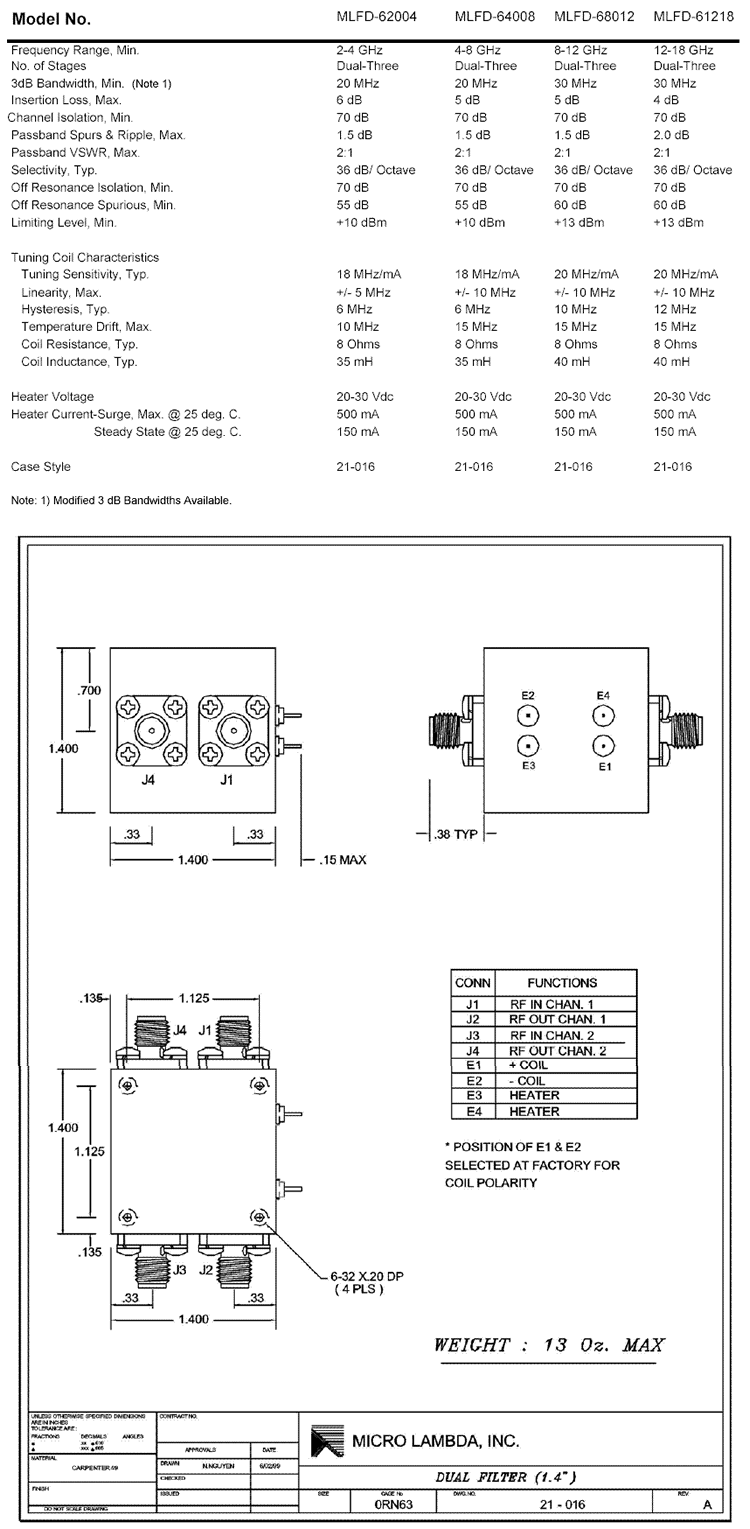

ELECTRICAL AND PERFORMANCE
SPECIFICATIONS
Guaranteed Specifications at -0º to +65º C Case Temperature
Micro Lambda Wireless,
Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221
* Fax (510) 770-9213
PDF
Format Data Sheet and Outline Drawing
