	MLFF SERIES PERMANENT MAGNET YIG BANDPASS FILTERS VXI/VME 4-16 GHz
FEATURES
4-16 GHz Frequency Coverage 4 Stage Version Excellent Linearity No Heater Required Miniature Size

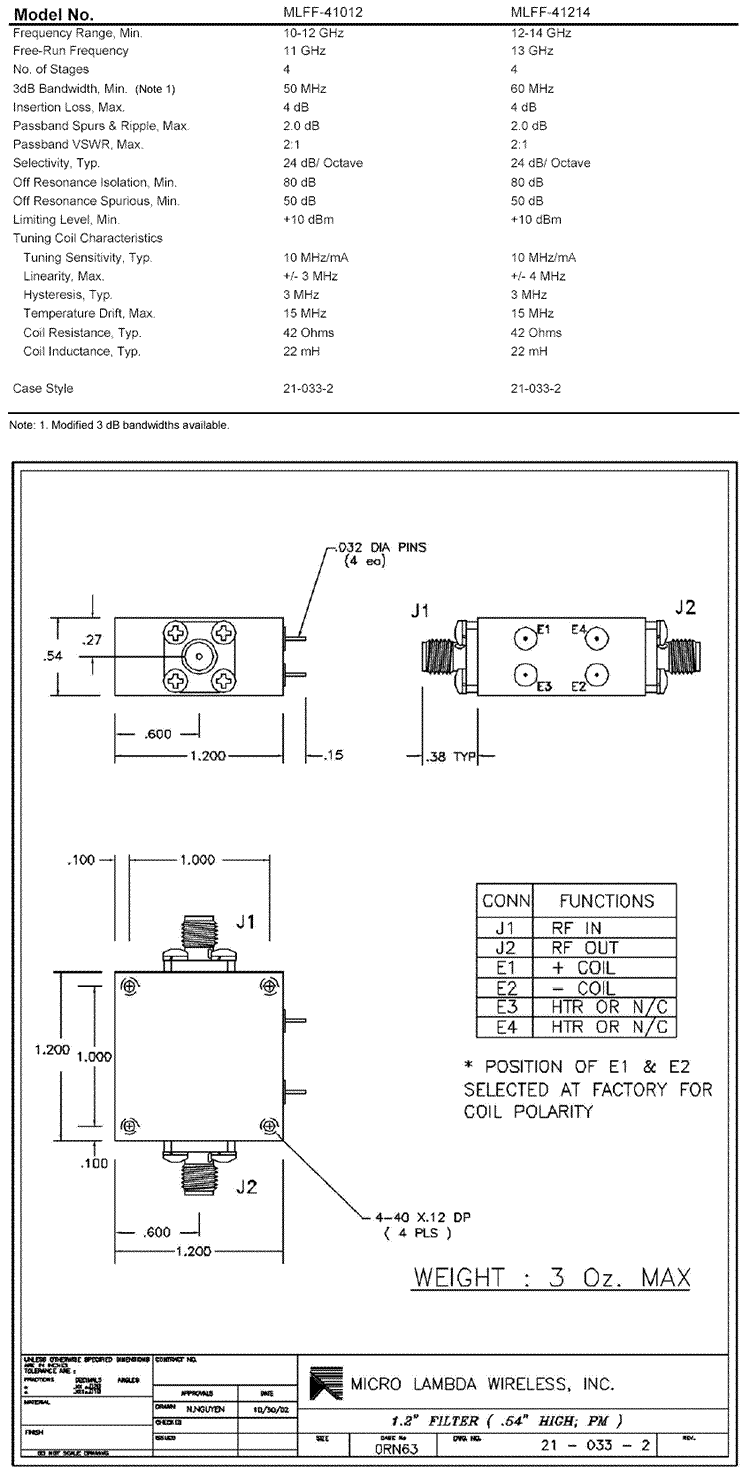

DESCRIPTION The MICRO LAMBDA MLFF-Series of Miniature YIG filters cover the frequency range of 4 GHz to 16 GHz and are available with 40 MHz minimum 3 dB bandwidths. They provide excellent linearity, low insertion loss and flat response over the frequency range. These filters offer the user the ability to reduce the size of current system designs as well as next generation system designs. This miniature line of filters are ideal for use in portable test sets, VXI base instruments, miniature receivers, and small microwave test equipment applications. ELECTRICAL AND PERFORMANCE SPECIFICATIONS (Partial Listing) Guaranteed Specifications at -0º to +65º C Case Temperature Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213 PDF Format Data Sheet and Outline Drawing Request for Quote Form Drivers: Contact Factory
