DESCRIPTION
The MICRO LAMBDA MLFM-Series 1” cube YIG filters cover the frequency range of 0.5 GHz to 18 GHz and are
available with 15-40 MHz 3 dB bandwidths. They provide excellent linearity, low insertion loss and flat response over
the frequency range. These filters offer the user the ability to reduce the size of current system designs as well as
next generation system designs. This 1” cube line of filters are ideal for use in miniature receivers, and small microwave
test equipment applications.

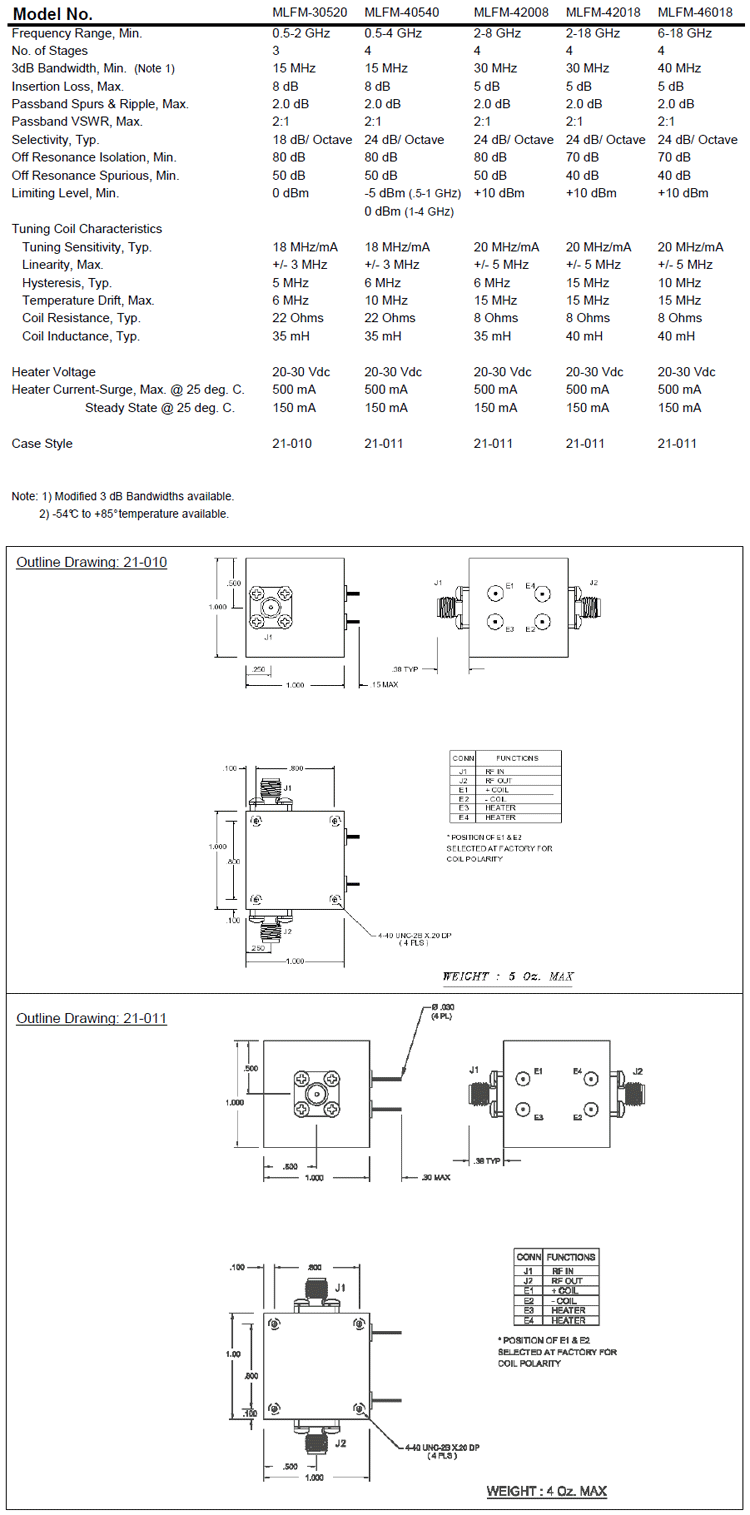

ELECTRICAL AND PERFORMANCE
SPECIFICATIONS
Guaranteed Specifications at -0º to +70º C Case Temperature (Note 2)
Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California
94538 * Phone (510) 770-9221 * Fax (510) 770-9213
