	MILLIMETER WAVE YIG BANDPASS FILTERS 3-50 GHz
FEATURES
3-50 GHz Frequency Coverage Excellent Linearity K-Type Connectors Low Insertion Loss

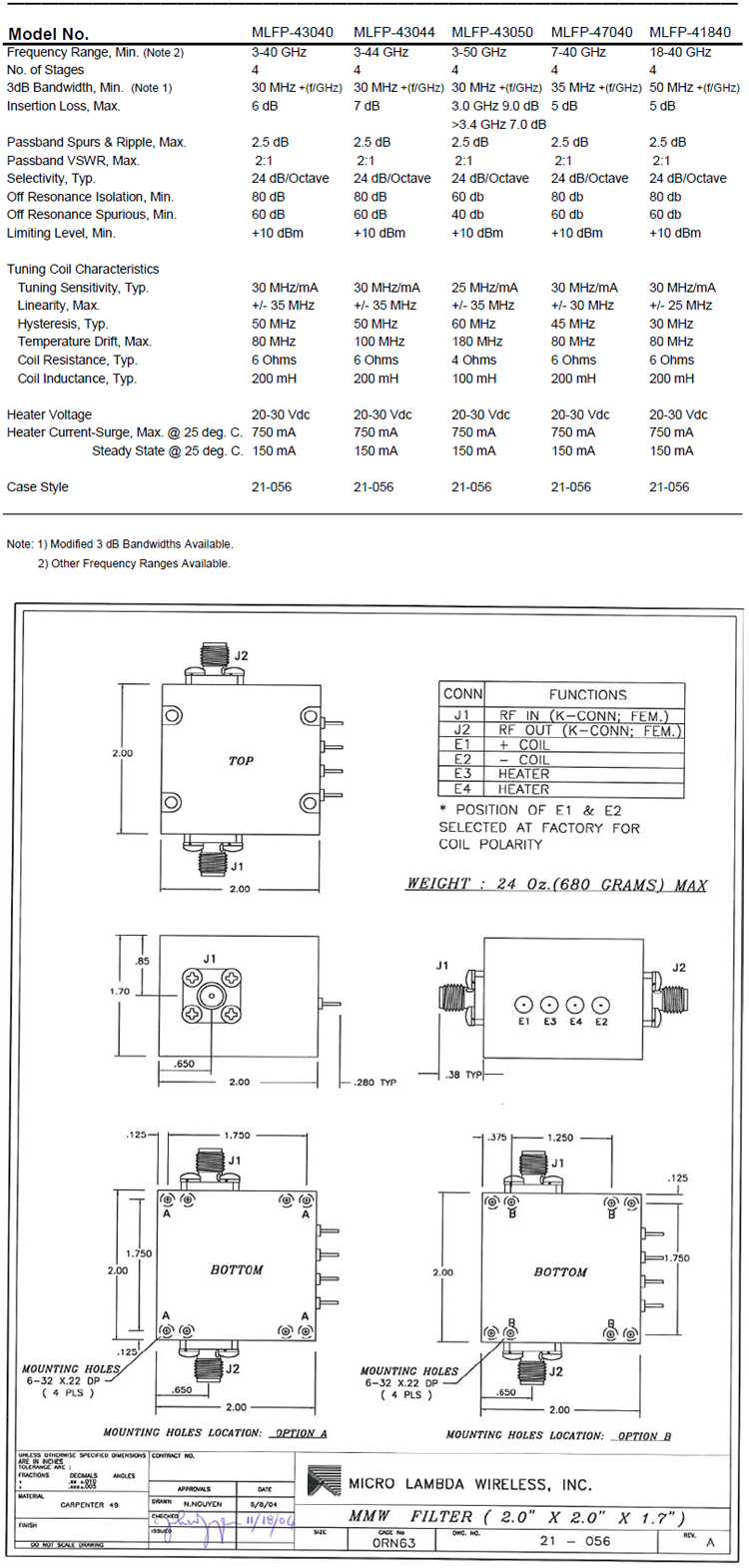

DESCRIPTION The MICRO LAMBDA Millimeter Wave line of 4-stage YIG bandpass filters provide high selectivity and offer excellent image rejection. Standard frequency bands include 3-50 GHz and 7-40 GHz and 18-40 GHz frequency coverage. These filters provide excellent linearity, low frequency drift and very flat 3 dB bandwidth response over the frequency range. These filters are suited for spectrum analyzers, down-converters and a variety of microwave test equipment applications. ELECTRICAL AND PERFORMANCE SPECIFICATIONS Guaranteed Specifications at -0º to +65º C Case Temperature Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213 PDF Format Data Sheet and Outline Drawing Request for Quote Form Drivers: Contact Factory
