DESCRIPTION
The MICRO LAMBDA MLMB-Series Miniature YIG-Tuned Oscillators are signal sources covering the frequency range of
2-8 GHz. These oscillators have been designed specifically for commercial applications where small size at low cost is the
primary consideration. The oscillator utilizes a bipolar transistor coupled to a YIG sphere in a thin-film oscillator circuit. YIG
heaters with low surge currents are used to maintain temperature stability. Standard output power levels of +13 to +15
dBm over the specified frequency band including the temperature range of 0° to +65°C is provided. These oscillators have
been designed specifically for mounting to industry standard PC board mediums. Standard size is 1" x 1" x .5" and weigh
one ounce.

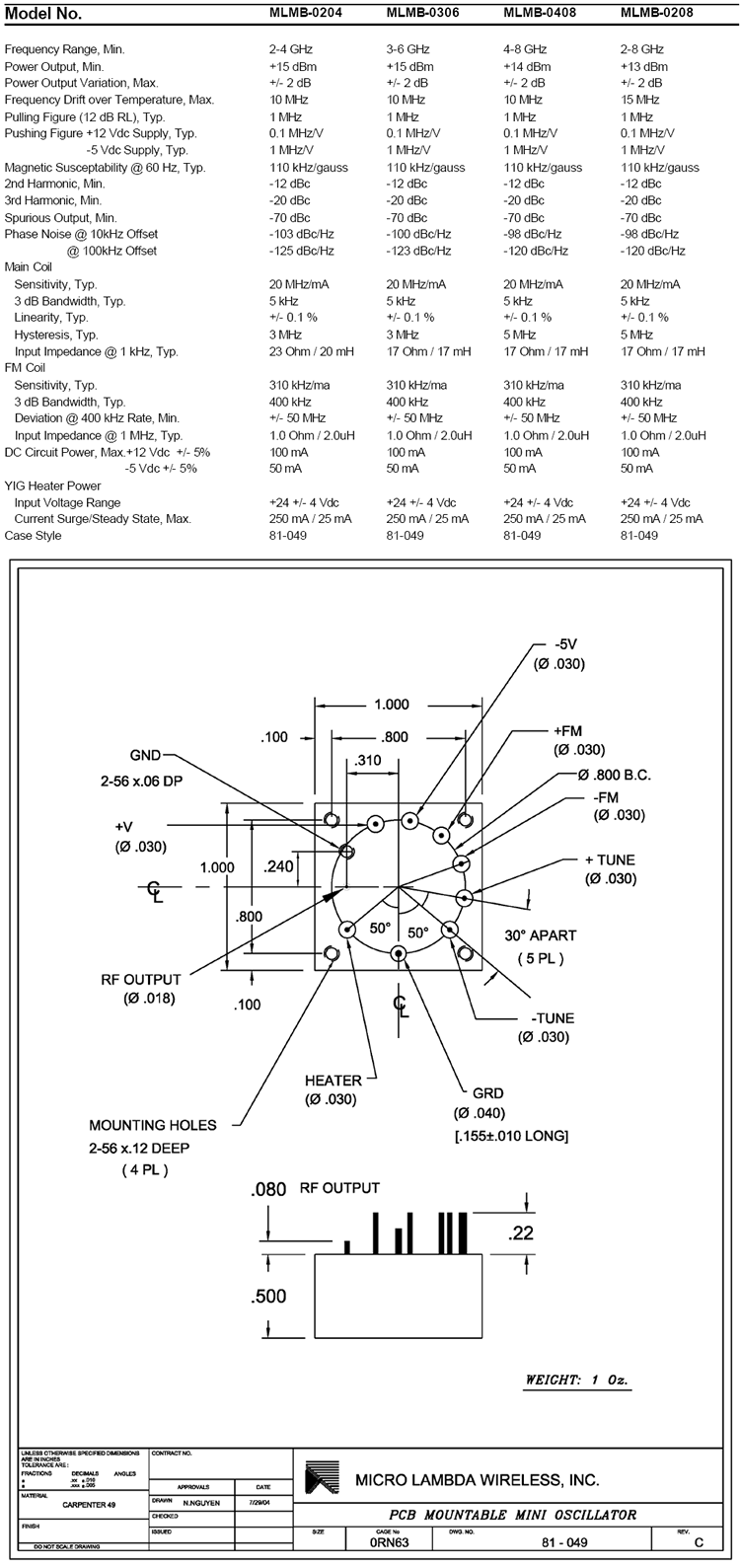

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –0º to +65º C Case Temperature
Micro Lambda Wireless,
Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221
* Fax (510) 770-9213
