MLTM SERIES (TO-8 .27")
MINIATURE YTO's

FEATURES
  • 2-4 GHz Frequency Coverage
  • FM/Phase-Lock Port
  • TO-8 Package
  • High Reliability




DESCRIPTION
The MICRO LAMBDA MLTM-Series Miniature YIG-Tuned Oscillators cover the frequency range of 2-4 GHz. They are fitted with a low power main coil, and FM coil for phase locking. All units operate from a +8 Volt and –5 Volt supply and operate over the 0º to + 65ºC temperature range. Units do not require a heater.

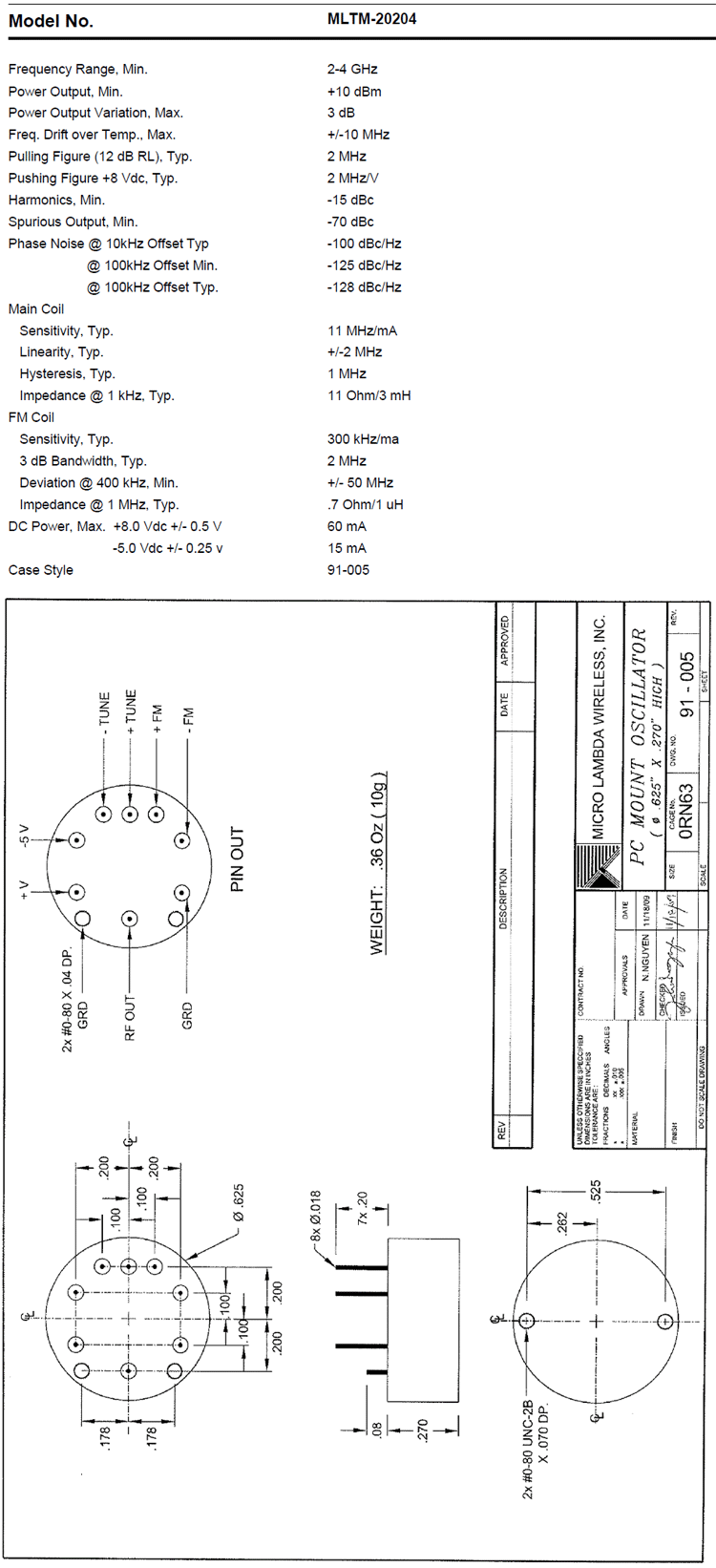

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –0º to +65º C Case Temperature


Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

PDF Format Data Sheet and Outline Drawing
