MLXM-EXTREME SERIES
LOW NOISE - 1” CUBE
YIG TUNED OSCILLATORS

FEATURES
  • 6-18 GHz Frequency Coverage
  • Revolutionary Phase Noise
  • FM/Phase-Lock Port
  • Superb Linearity
  • High Reliability


DESCRIPTION
MICRO LAMBDA MLXM-Extreme Series 1" cube YIG Tuned Oscillators cover multi-octave bands from 6 to 18 GHz for commercial applications. Utilizing Thin Film Technology for reliability and cost effectiveness, the standard “Extreme” series oscillators are specified to operate from 0 to 65°C and provide unparalleled phase noise performance. Units provide –100 dBc/Hz @ 10 kHz offset and –123 dBc/Hz @ 100 kHz offset guaranteed performance! Typical performance is –128 dBc/Hz @ 100 kHz offset. These oscillators are ideal for synthesizers, receivers and specialized test equipment. Oscillators can be furnished with integrated or remote analog, digital TTL or serial drivers.

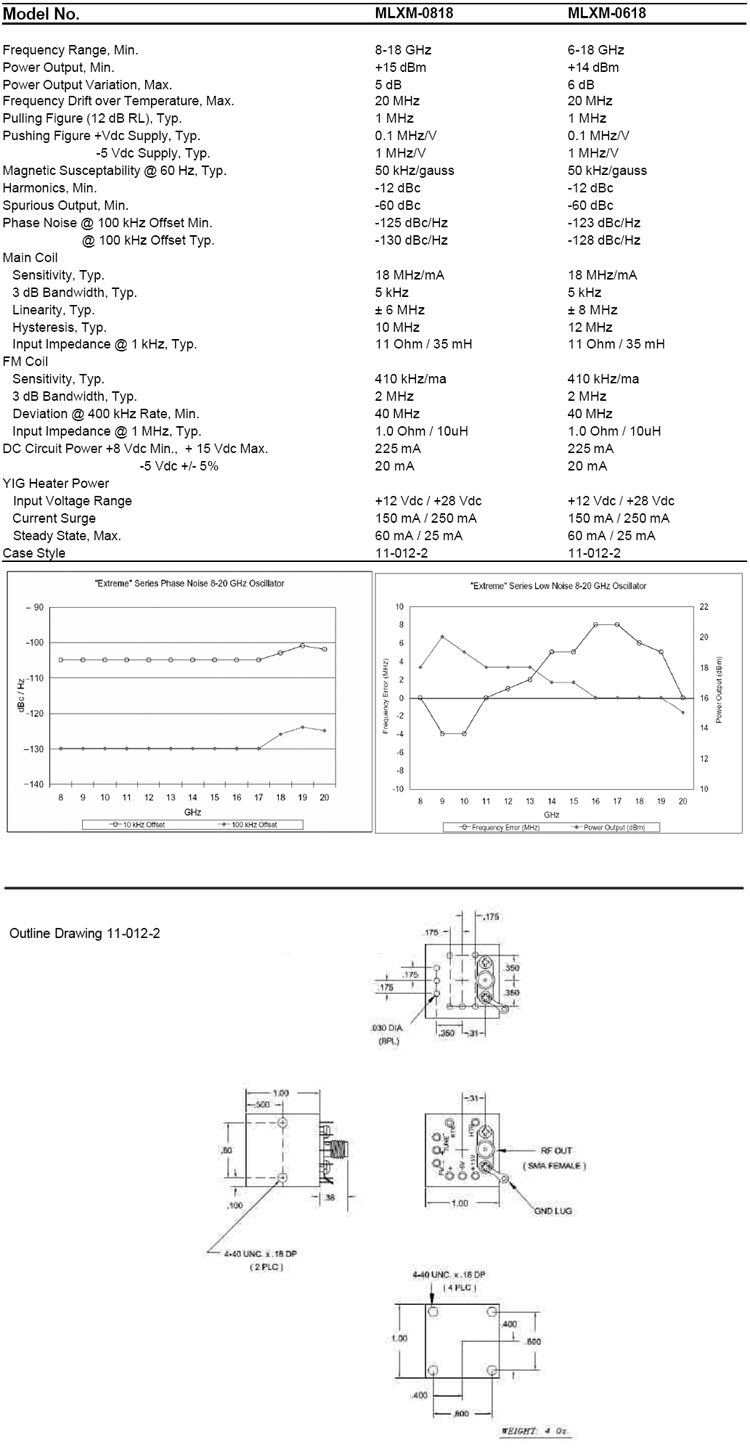

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –0º to +65º C Case Temperature

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

PDF Format Data Sheet and Outline Drawing

Request for Quote Form

Drivers: Contact Factory
