DESCRIPTION
The MICRO LAMBDA New X-Series oscillators are Low Noise sources covering the various frequency bands for VSAT
applications. They are available in frequency bands to cover the entire Tri-Band range of 4.2-14.2 Ghz, the C and X-Band
frequency range of 4.6-8.9 Ghz and the Ku-Band frequency range of 11.6-13.9 Ghz. These oscillators have been specifically
designed and ruggedized for superior microphonic performance required by commercial and military environments. All
units in this series have specialized assembly and test processes to insure that the stringent microphonic requirements are
met. They are field proven in the latest up and down converter designs currently being deployed. Unit sizes vary depending
on frequency requirements, from 1.25" cube to VXI/VME and come with field replaceable SMA connectors.

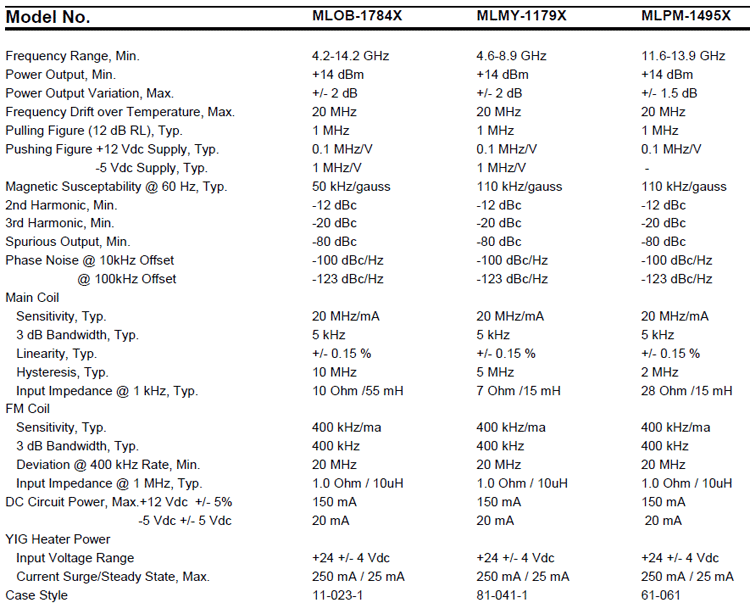

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –40º to +70º C Case Temperature
