MLLP SERIES
PERMANENT MAGNET YTOs
 LOW POWER CONSUMPTION

FEATURES
  • 2-12 GHz Frequency Coverage
  • Customer Selected Fixed Frequency
  • FM/Phase-Lock Port
  • Miniature Size
  • +8 Vdc Supply
  • No Heaters Required

DESCRIPTION
The MICRO LAMBDA MLLP-Series Permanent Magnet YIG-Tuned Oscillators cover the frequency range of 2- 12 GHz and operate from a single +8 Volt supply. They are available at customer selected fixed frequencies and are fitted with a FM coil for phase locking. They operate over the -20º to + 70ºC temperature range without the use of heaters. Units are compliant with ANSI/ETSI thermal, shock and vibration requirements.

Units are available in a standard 1" x 1" x .5" configuration with a field replaceable RF connector and weigh one ounce.

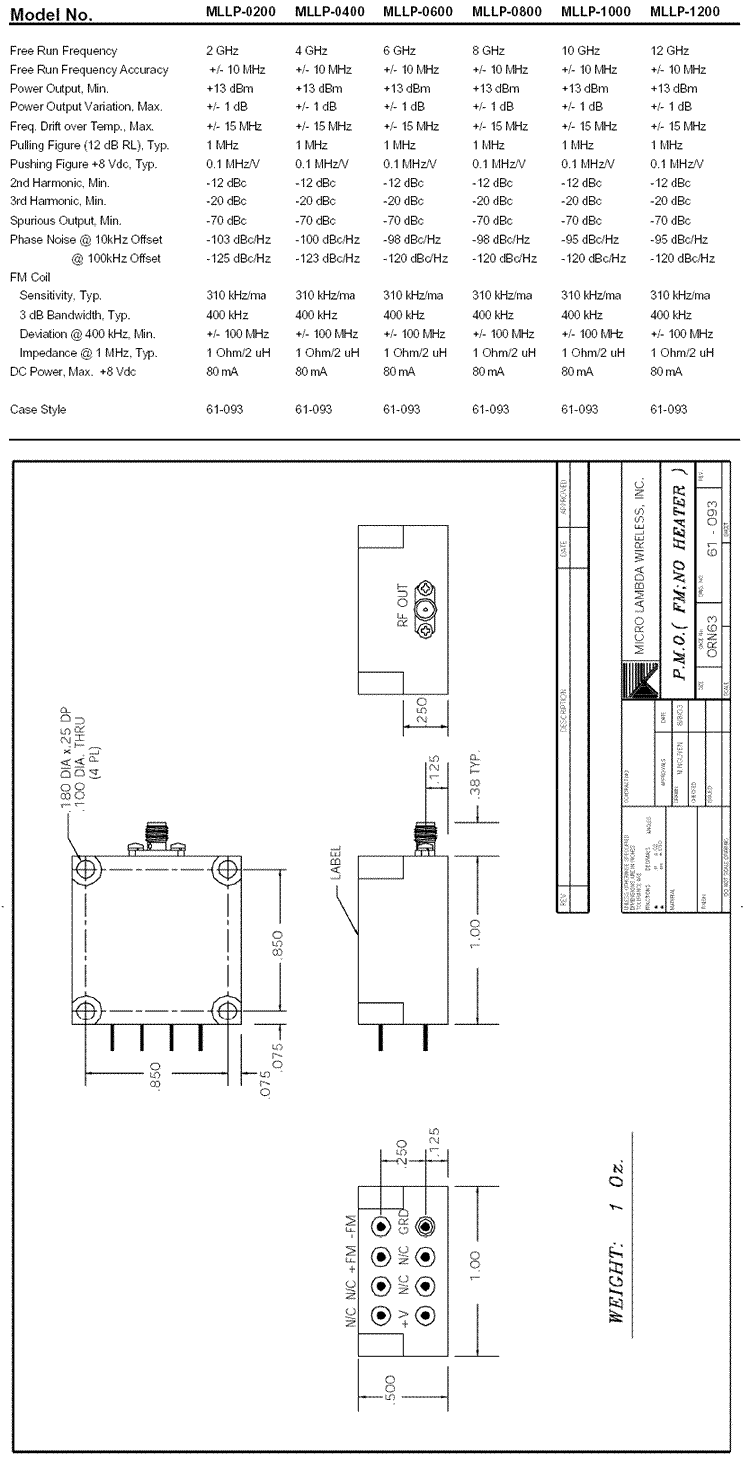

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –20º to +70º C Case Temperature

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

PDF Format Data Sheet and Outline Drawing
