MLPB SERIES
PERMANENT MAGNET YTOs
PC BOARD MOUNT

• 2-8 GHz Frequency Coverage
• FM/Phase-Lock Port
• Miniature Size
• High Reliability
• PC Board Mount Compatible

DESCRIPTION
The MICRO LAMBDA MLPB-Series Miniature Permanent Magnet YIG-Tuned oscillators are signal sources covering the frequency range of 2-8 GHz. These oscillators have been designed specifically for commercial applications where small size at low cost is the primary consideration. The oscillator utilizes a bipolar transistor coupled to a YIG sphere in a thin-film oscillator circuit. YIG heaters with low surge currents are used to maintain temperature stability. These oscillators have been designed specifically for mounting to industry standard PC board mediums. Standard size is 1 " x 1 " x .5" and weigh one ounce.

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

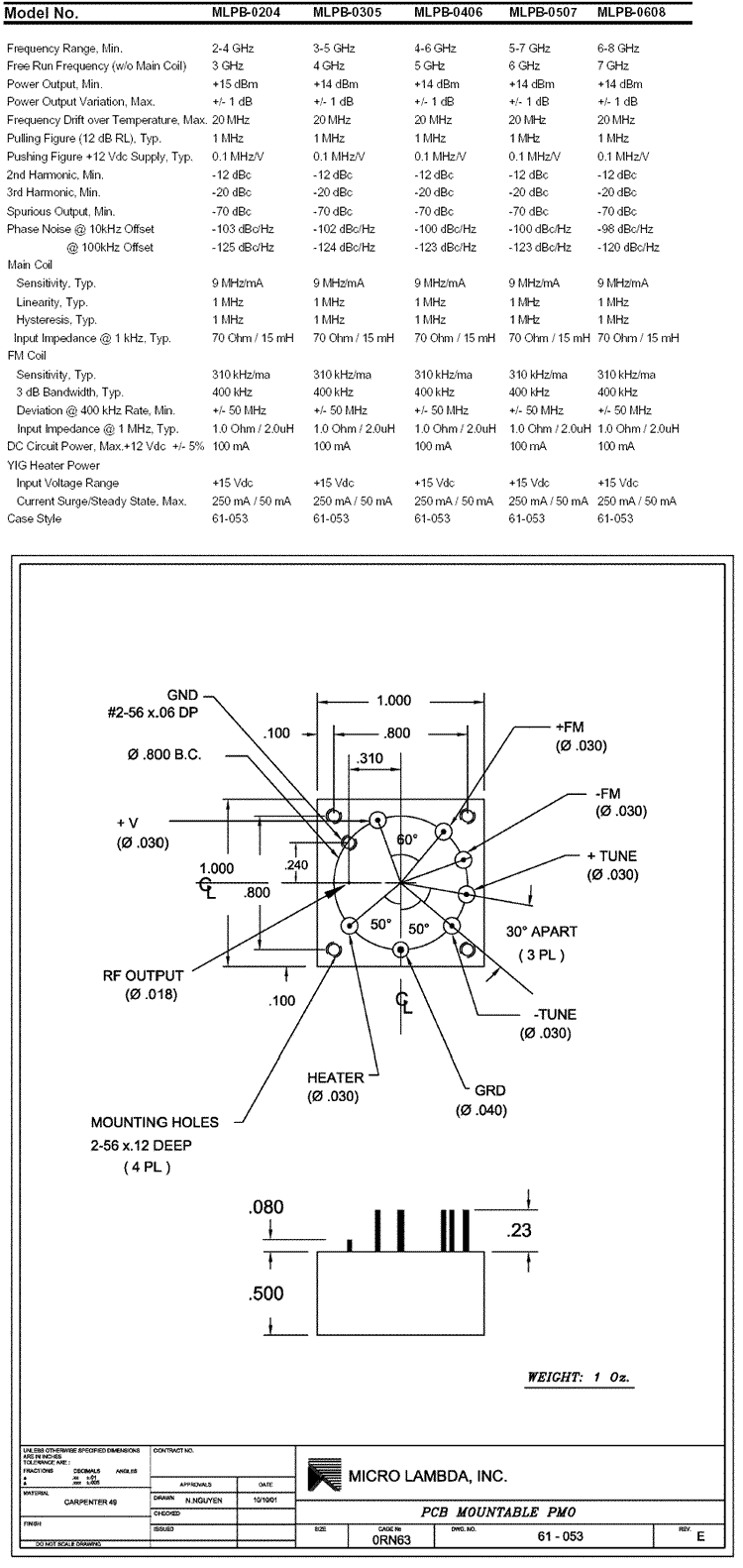

PDF Format Data Sheet and Outline Drawing
