MLPF SERIES
PERMANENT MAGNET YTOs
 FIXED FREQUENCY VXI/VME

FEATURES
  • 2-20 GHz Frequency Coverage
  • Customer Selected Fixed Frequency
  • FM/Phase-Lock Port
  • Miniature Size
  • High Reliability
  • Bi-Polar & FET Circuits

DESCRIPTION
The MICRO LAMBDA MLPF-Series Permanent Magnet YIG-Tuned Oscillators cover the frequency range of 2- 20 GHz. They are available at customer selected fixed frequencies and are fitted with a FM coil for phase locking. All units operate from a single +12 Volt supply and operate over the -20º to + 70ºC temperature range. Units are compliant with ANSI/ETSI thermal, shock and vibration requirements. They are ideal for local oscillators where low phase noise is the prime consideration.

Bi-Polar technology is available 2-14 GHz for superior fundamental and frequency multiplied phase noise. FET technology is available 8-20 GHz for cost effective fundamental frequency applications. Units are available in a standard 1" x 1" x .5" configuration with a field replaceable RF connector and weigh one ounce.

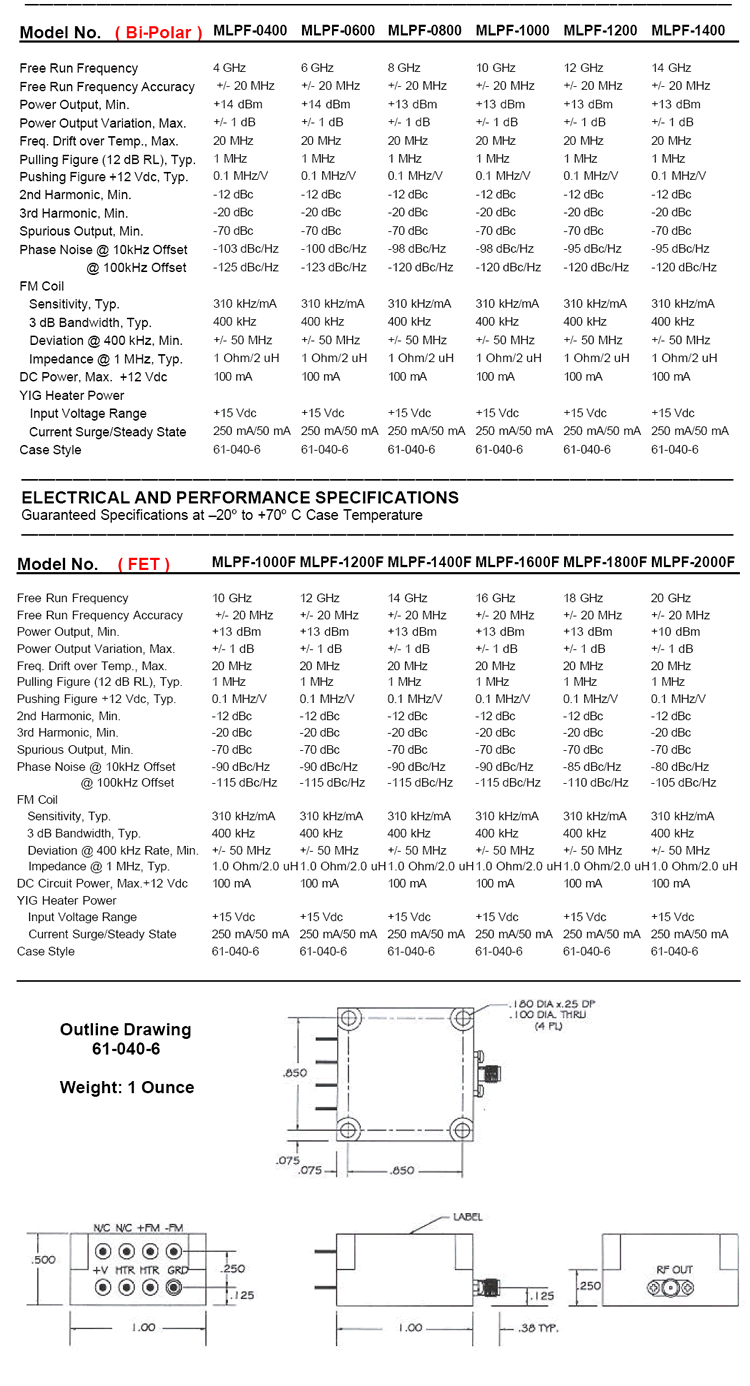

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –20º to +70º C Case Temperature
