MLPM SERIES (BI-POLAR)
PERMANENT MAGNET YTOs
 VXI/VME

FEATURES
  • 2-14 GHz Frequency Coverage
  • Tunable in 2 GHz wide frequency bands
  • FM/Phase-Lock Port
  • Miniature Size
  • High Reliability
  • Bi-Polar Circuits

DESCRIPTION
The MICRO LAMBDA MLPM-Series Permanent Magnet YIG-Tuned Oscillators cover the frequency range of 2- 14 GHz. They are available in customer selected 2 GHz tuning bandwidths and are fitted with a low power main coil, and FM coil for phase locking. All units operate from a single +12 Volt supply and operate over the -20º to + 70ºC temperature range. Units are compliant with ANSI/ETSI thermal, shock and vibration requirements. They are ideal for QAM modulated digital radios where microphonics and phase-hits are not tolerated.

Bi-Polar technology is provided across 2-14 GHz for superior fundamental and frequency multiplied phase noise. Units are available in a standard 1" x 1" x .5" configuration with a field replaceable RF connector and weigh one ounce.

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –20º to +70º C Case Temperature

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

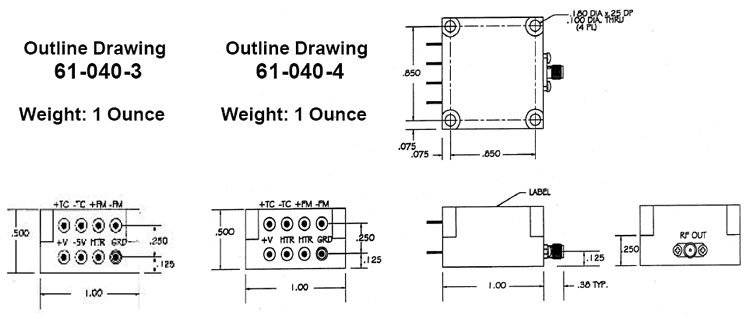

PDF Format Data Sheet and Outline Drawing
