MLPM SERIES (FET)
PERMANENT MAGNET YTOs
VXI/VME

• 9-20 GHz Frequency Coverage
• Tunable in 2 GHz wide frequency bands
• FM/Phase-Lock Port
• Miniature Size
• High Reliability
• FET Circuits

DESCRIPTION
The MICRO LAMBDA MLPM-Series Permanent Magnet YIG-Tuned Oscillators cover the frequency range of 9-20 GHz. They are available in customer selected 2 GHz tuning bandwidths and are fitted with a low power main coil, and FM coil for phase locking. All units operate from a single +12 Volt supply and operate over the -20º to + 70ºC temperature range. Units are compliant with ANSI/ETSI thermal, shock and vibration requirements. They are ideal for QAM modulated digital radios where microphonics and phase-hits are not tolerated.

FET technology is provided across 9-20 GHz for cost effective fundamental and frequency applications. Units are available in a standard 1" x 1" x .5" configuration with a field replaceable RF connector and weigh one ounce.

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

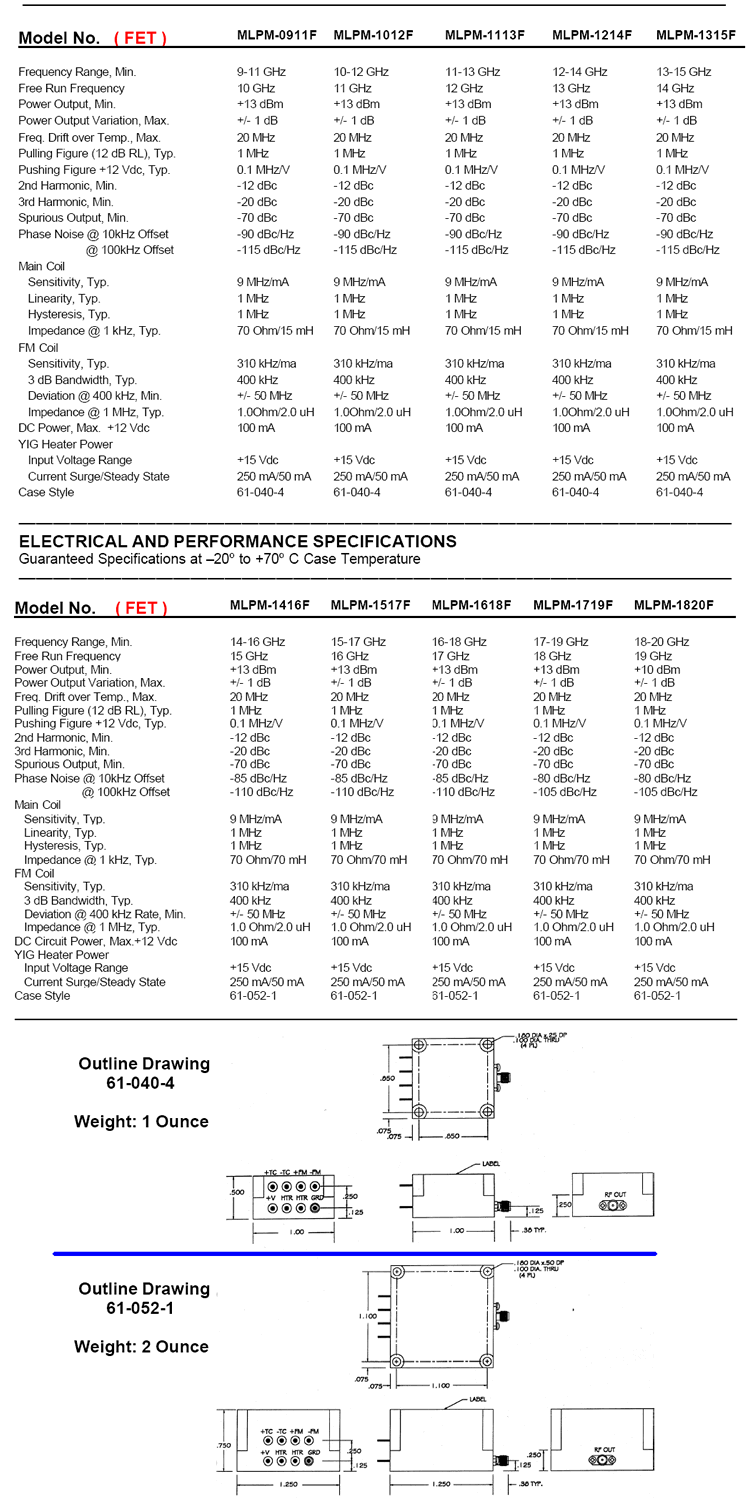

PDF Format Data Sheet and Outline Drawing
