DESCRIPTION
The MICRO LAMBDA MLPW-Series Permanent Magnet
YIG-Tuned Oscillators are signal sources covering the frequency range
of 8-22 GHz. They are available in any customer selected 4
GHz tuning bandwidth (±2 GHz). These oscillators have been specifically
designed with the latest permanent magnet technology to yield excellent
performance over temperature and environmental conditions. All units operate
from a single +12 Volt supply and over the -20º to + 70ºC temperature
range. Extensive testing has been performed on these units to qualify
them for QPSK, 16 QAM and 64 QAM Digital Radios where microphonics and
phase-hits are not tolerated. The units are available in a standard 1.25
" x 1.25 " x.75" configuration with a field replaceable RF connector and
weigh two ounces.

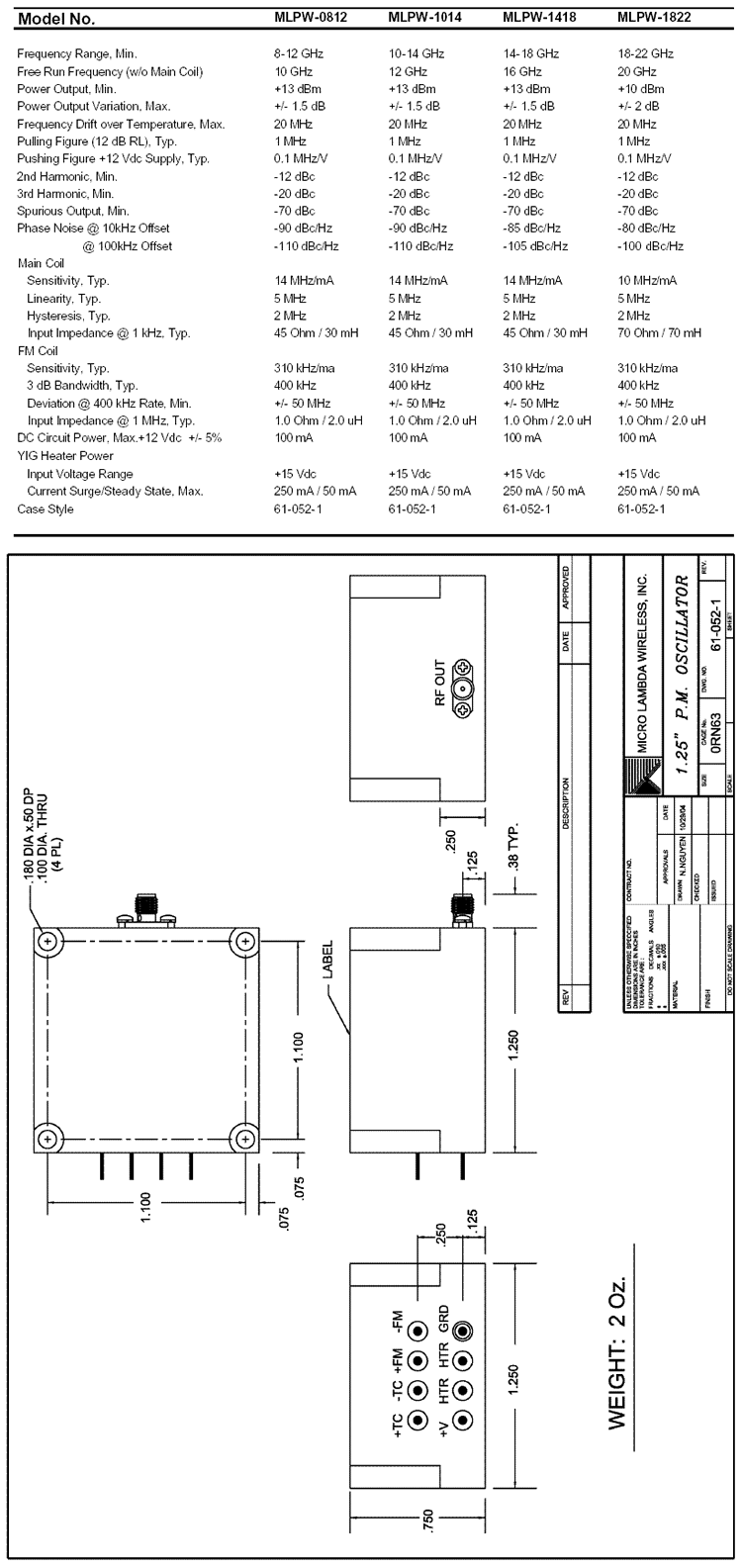

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –20º to +70º C Case Temperature
