MLPX SERIES
PERMANENT MAGNET YTOs
 WIDE BAND MILLIMETER (x2)

FEATURES
  • 8 GHz Tuning Bandwidth
  • 16-40 GHz Frequency Coverage
  • Low Phase Noise
  • FM/Phase-Lock Port
  • High Reliability

DESCRIPTION
The MICRO LAMBDA MLPX-Series Doubled Permanent Magnet YIG-Tuned Oscillators are signal sources covering the frequency range of 16-40 GHz. They are available in any customer selected 8 GHz tuning bandwidth (±4 GHz). These frequency sources have been specifically designed with the latest permanent magnet technology to yield excellent performance over temperature and environmental conditions. All units operate from a single +12 Volt supply and over the -20º to + 70ºC temperature range. Extensive testing has been performed on these units to qualify them for QPSK, 16 QAM and 64 QAM Digital Radios where microphonics and phase-hits are not tolerated.

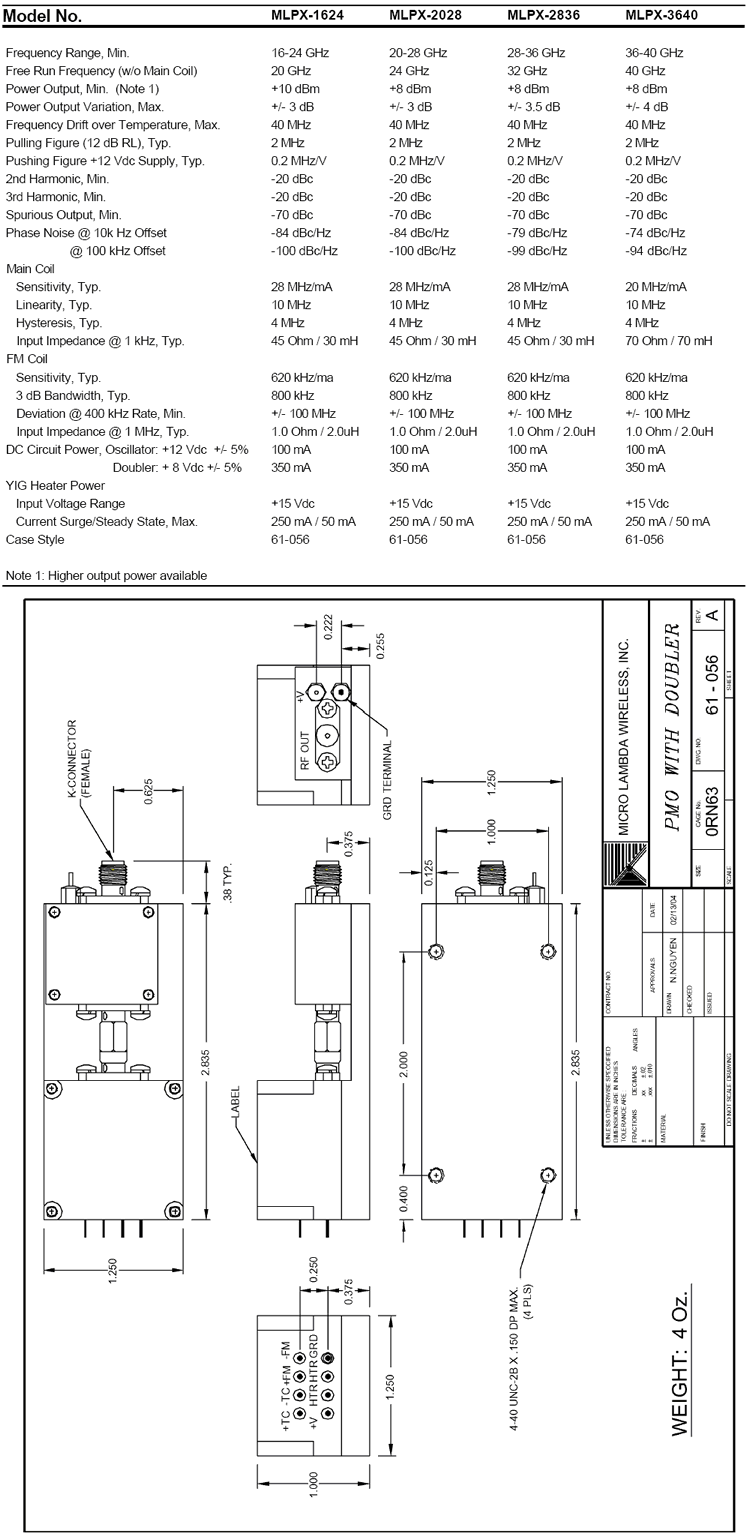

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –20º to +70º C Case Temperature

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

PDF Format Data Sheet and Outline Drawing

Request for Quote Form

Drivers: Contact Factory
