	MINIATURE YTOs COMMERCIAL ANALOG DRIVERS CA-SERIES
FEATURES
500 MHz to 8 GHz Compensation for Temperature Drift Voltage Regulators for Improved Stability 0-10 Volt Tuning Resolution Remote Oscillator/Driver Location

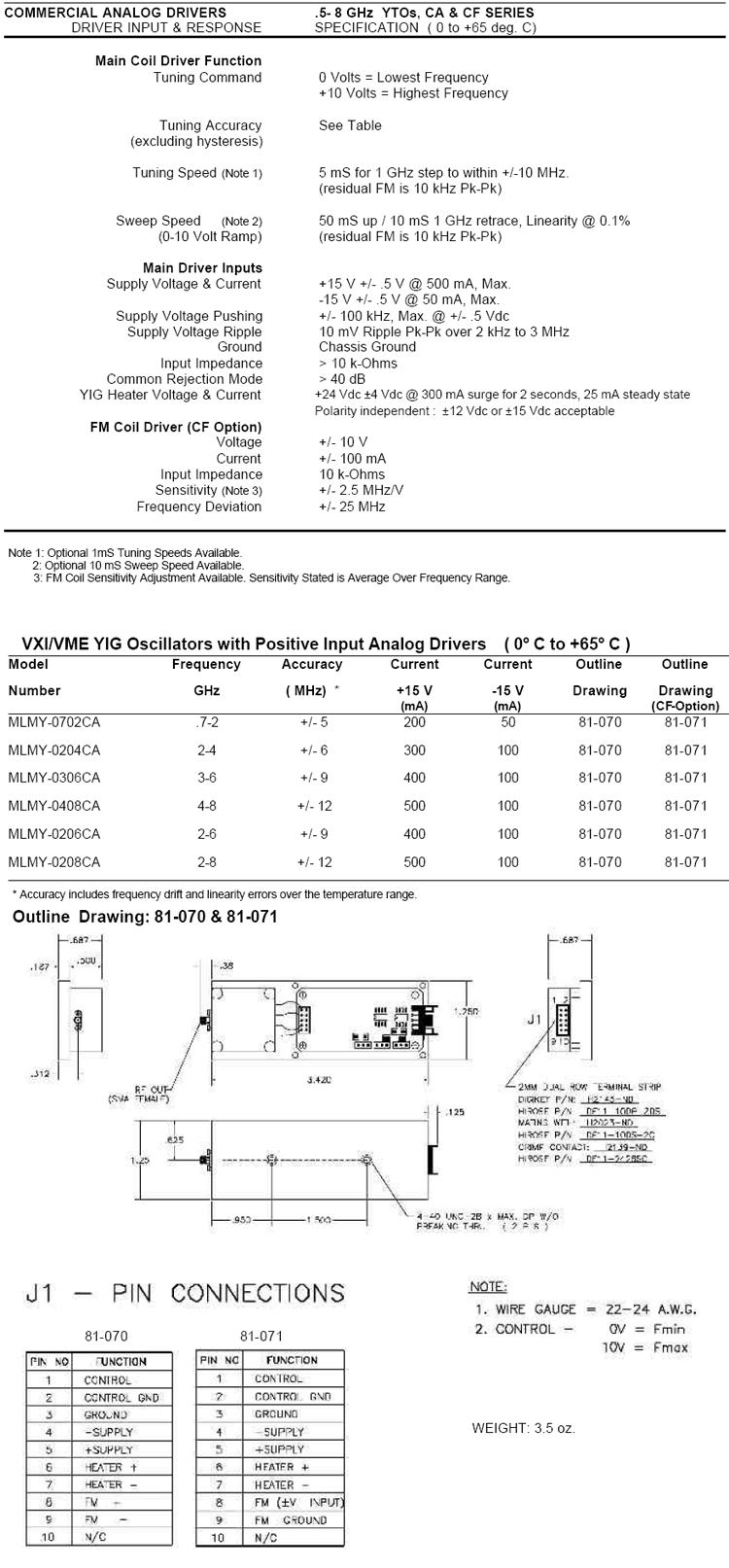

DESCRIPTION Micro Lambda MLMY Series Miniature YIG Oscillators are available with integrated analog driver circuits. These drivers eliminate the need for customers to design or develop their own driver circuits and sophisticated test and alignment procedures. Integrating a driver at Micro Lambda’s factory ensures peak performance. Alignment and compensation with the particular YIG oscillator can be maximized down to the component level. All drivers in this series provide input voltage regulators and compensation circuits to improve frequency drift. All voltages required by the YIG oscillator, except the heater inputs are supplied by the voltage regulators. Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213 PDF Format Data Sheet and Outline Drawing Component Data Sheet: MLMY Series
