	YIG-TUNED MULTIPLIER ASSEMBLY MLMA-1818
FEATURES
4 Stage YIG Filter 1 Watt Input Amplifier 0-10V Analog Driver MIL-STD Approved

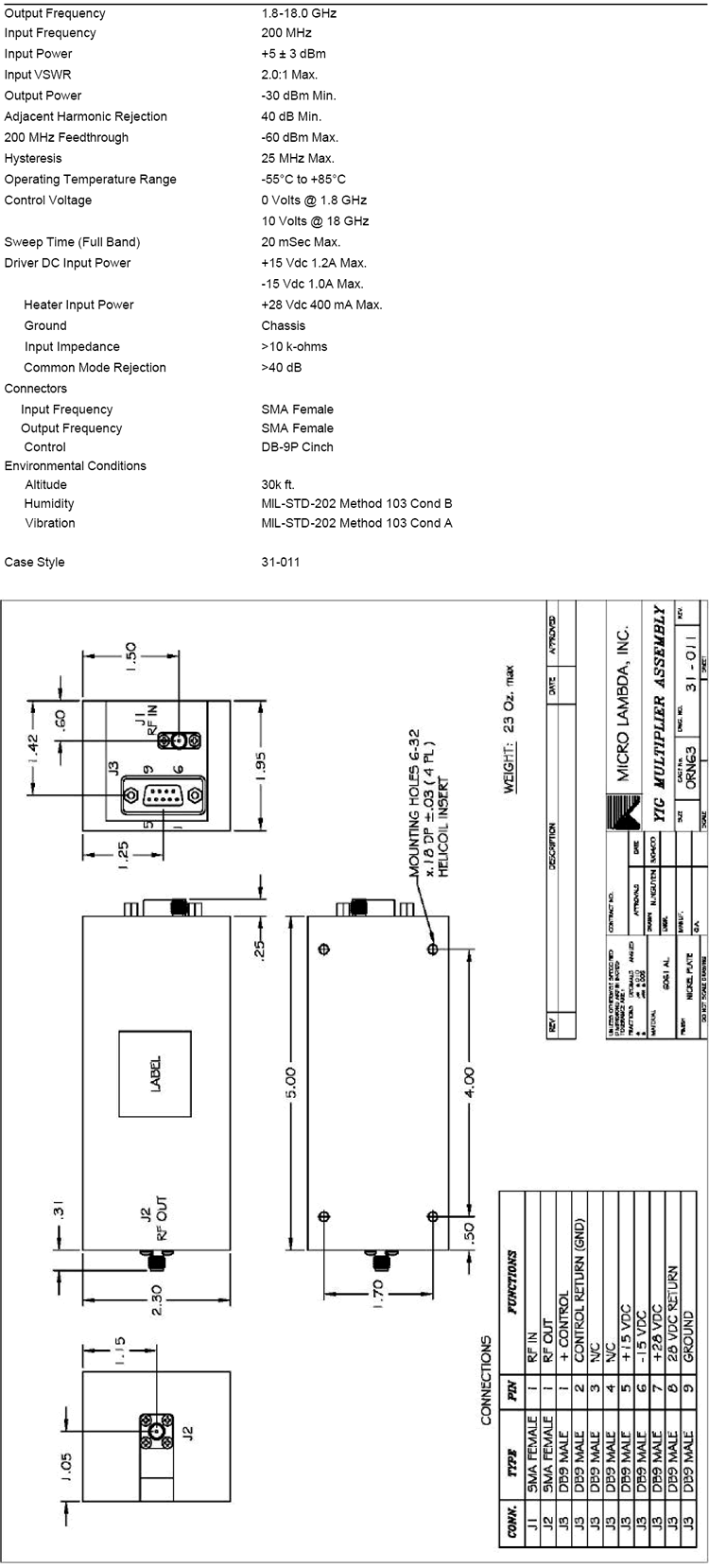

DESCRIPTION The MLMA-1818 multiplier assembly incorporates a multiplier circuit, 4 stage YIG filter, analog driver and 1 Watt input amplifier. Combining these multiple functions into one assembly insures maximum performance out of the assembly. Input frequency of 200 MHz is utilized to generate 200 MHz combs across the full 1.8-18 GHz frequency range. PERFORMANCE SPECIFICATIONS Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213 PDF Format Data Sheet and Outline Drawing Request for Quote Form Drivers: Contact Factory
