MLOS SERIES 40 GHz
YIG TUNED OSCILLATORS
MILLIMETER WAVE

• 18-40 GHz Coverage
• K-Style RF Output
• FM/Phase-Lock Port
• High Reliability

DESCRIPTION
MICRO LAMBDA WIRELESS Millimeter Wave oscillators are fundamental GaAs FET YIG-Tuned signal sources which provide +13 dBm minimum output power over the 18-40 GHz frequency band. These oscillators are biased from a single +15 volt source and require 200 mA max to operate. The units come with an FM tuning coil which may be used to frequency modulate, phase lock or fine tune the output signal. These oscillators are ideal for use in spectrum analyzers, sweep generators, receivers and synthesizers.

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

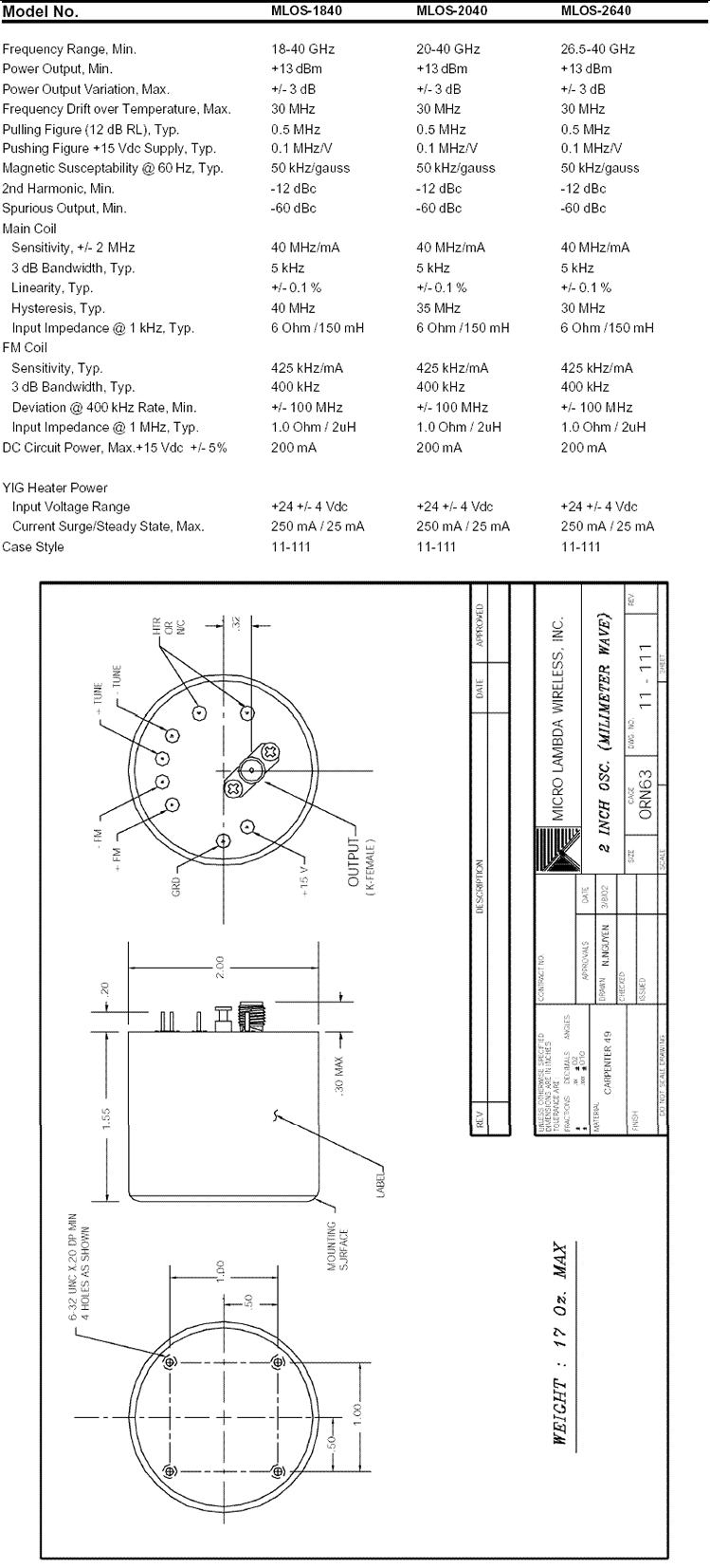

PDF Format Data Sheet and Outline Drawing
