DESCRIPTION

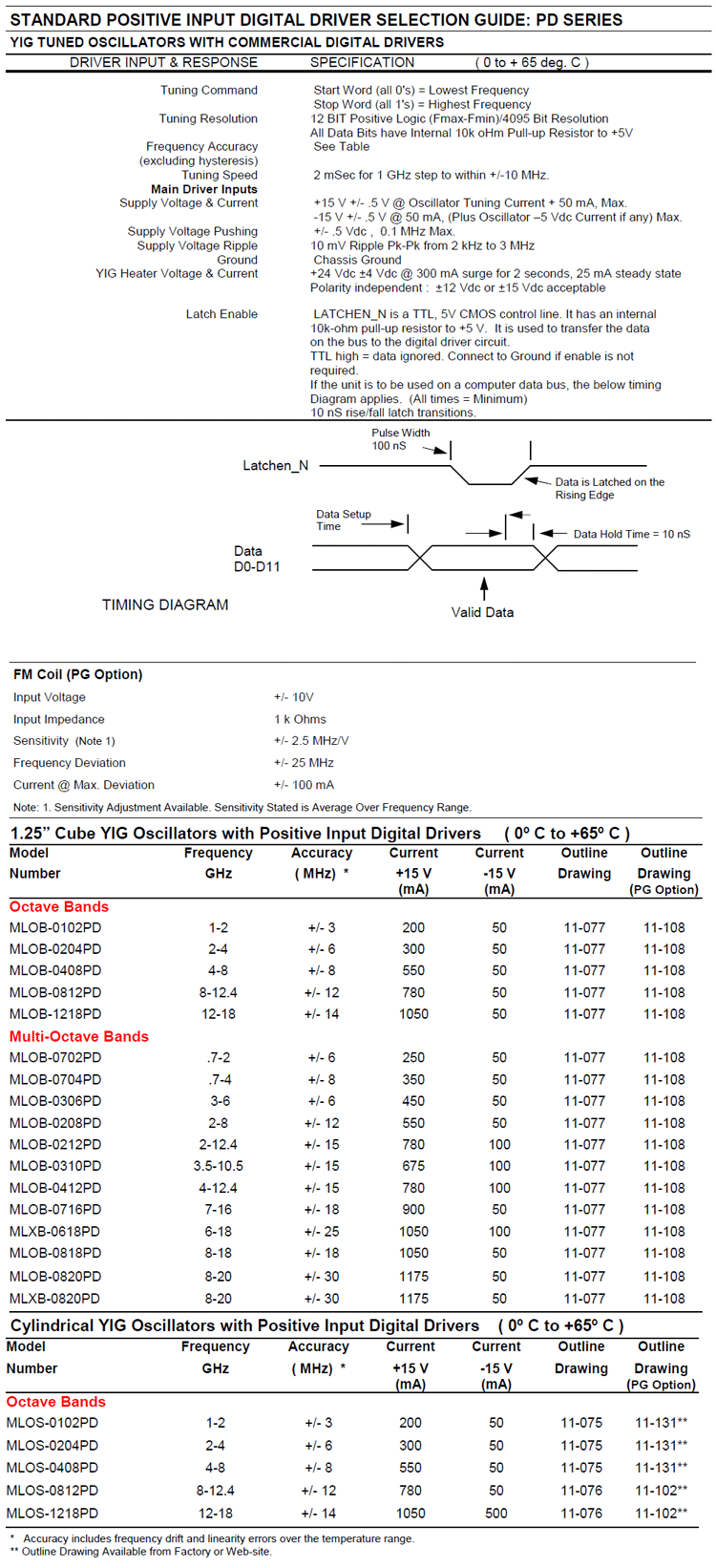

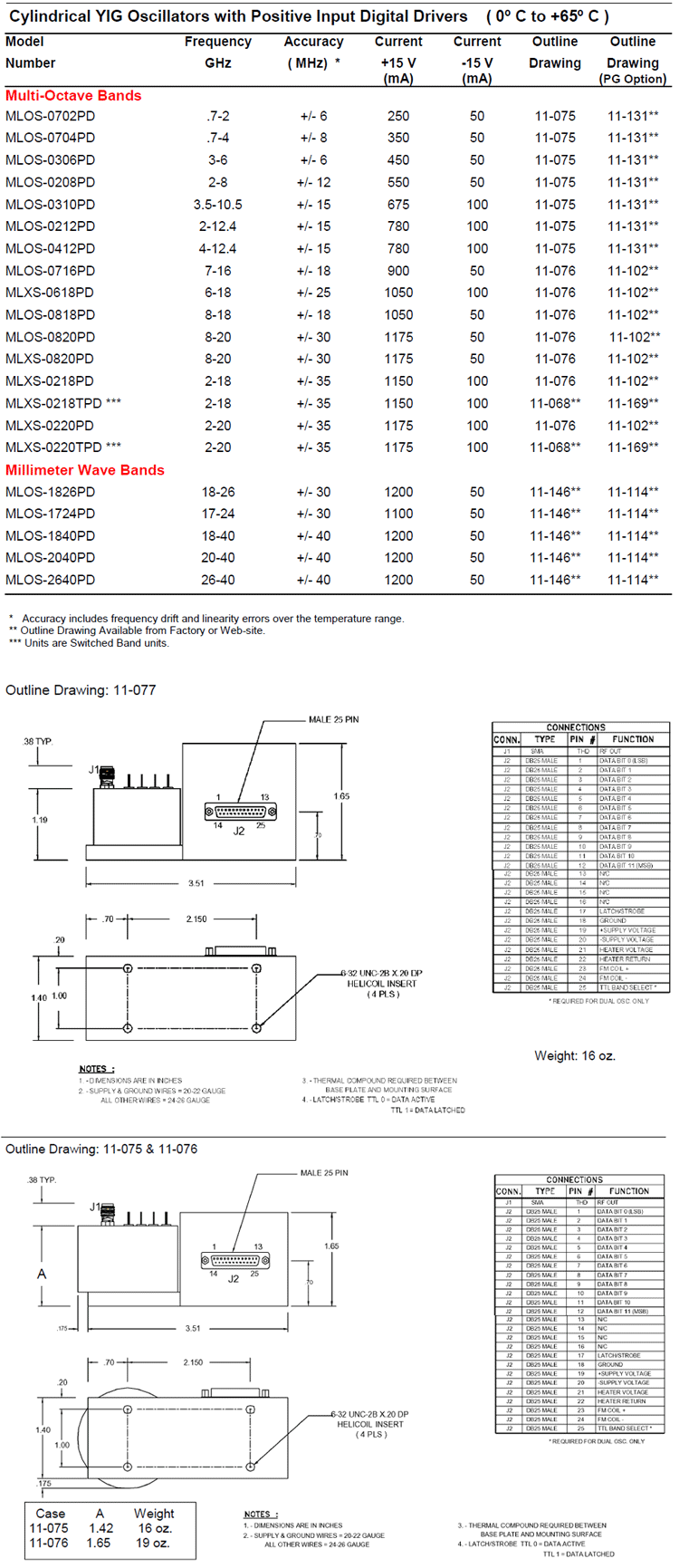

MICRO LAMBDA YIG Oscillators, model type, MLOB, MLXB, MLOS, MLXS and MLXS-T Series are available with integrated digital driver circuits.
MICRO LAMBDA drivers eliminate the need for customers to design or develop their own driver circuits and sophisticated test and alignment procedures. Integrating a driver at MICRO LAMBDA’s factory ensures that peak performance will be achieved at the time of manufacture. Alignment and compensation with the particular YIG oscillator can be maximized down to the component level.
All drivers in this series provide input voltage regulators, and compensation circuits to improve frequency drift.
Micro
Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont CA 94538
* Phone (510) 770-9221 * Fax (510) 770-9213
PDF
Format Data Sheet
Component Data Sheets:
MLOB Series (Octave Band) MLOB Series (Multi-Octave Band)
MLOS Series (Octave Band) MLOS Series (Multi-Octave Band) MLOS Series (Millimeter Wave) MLOS Series (40GHz)
MLOS-P Series MLXS-T Series MLXS-Series MLXB-Series |
