DESCRIPTION
MICRO LAMBDA MLOB-Series 1.25" square YIG Tuned Oscillators cover octave and multi-octave bands
from .7 to 20 GHz for both the commercial and defence applications. Utilizing Thin Film Technology for
reliability and cost effectiveness, our standard oscillators are specified to operate from 0 to 650C. However, all
of MICRO LAMBDA oscillators can be furnished to military specifications and an operating temperature range
of -540C to +850C. With proprietary designs on magnetic circuitry, oscillator circuitry and on coupling
techniques, MICRO LAMBDA oscillator products offer excellent Tuning Linearity and Extended Tuning Bandwidth.
Oscillators can be furnished with integrated or remote analog or digital drivers.

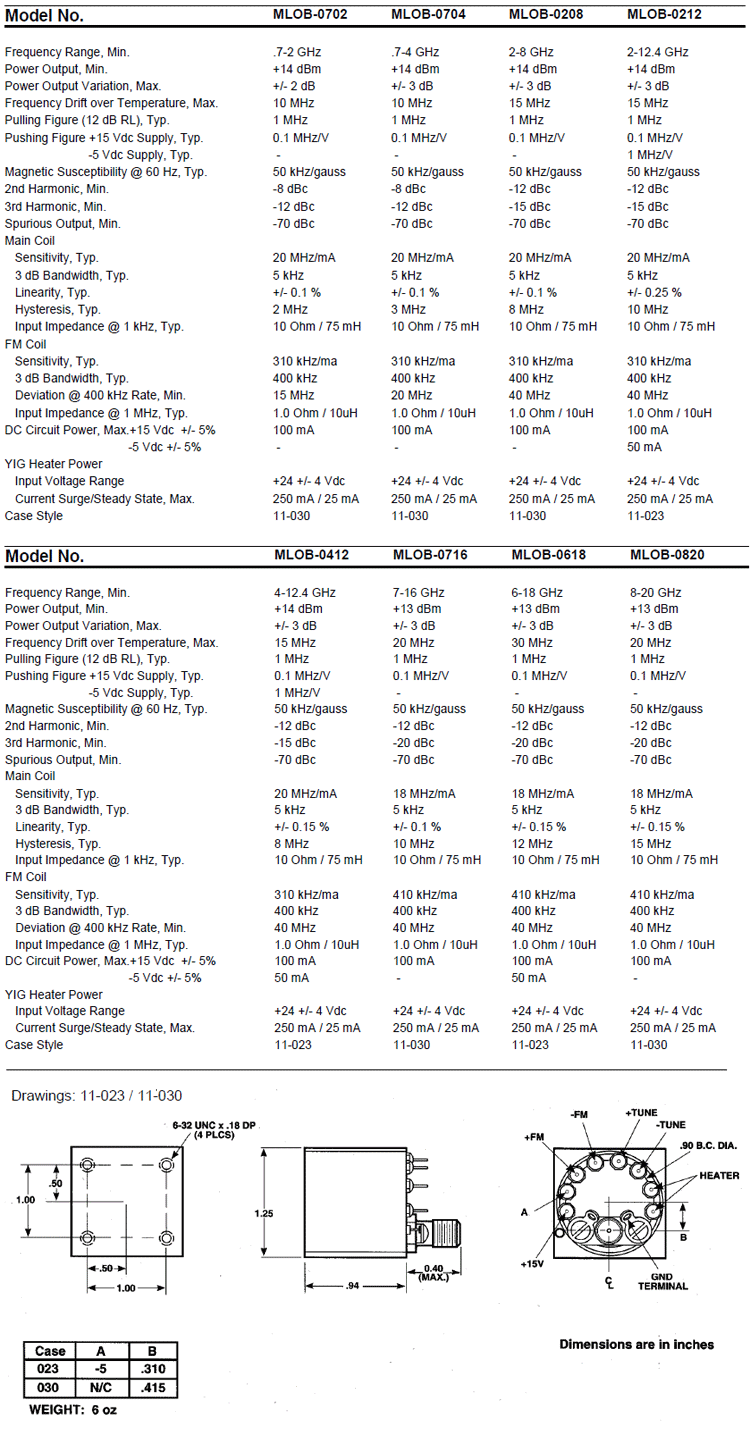

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –0º to +65º C Case Temperature
Micro Lambda Wireless, Inc. -
46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221
* Fax (510) 770-9213
PDF
Format Data Sheet and Outline Drawing
Request
for Quote Form
Drivers:
Commercial Analog Driver (PA Series) Commercial Digital Driver (PD Series) Commercial Series Driver (SD Series)
Military Digital Driver (MD Series) Military Serial Driver (MS Series) |
