MLOM Series Commercial Analog Drivers CA Series

	1.0 INCH CUBE YTOs COMMERCIAL ANALOG DRIVERS CA-SERIES
FEATURES
700 MHz to 18 GHz Compensation for Temperature Drift Voltage Regulators for Improved Stability 0-10 Volt Tuning Resolution
DESCRIPTION Micro Lambda MLOM and MLXM Series 1” Cube YIG Oscillators are available with integrated analog driver circuits. These drivers eliminate the need for customers to design or develop their own driver circuits and sophisticated test and alignment procedures. Integrating a driver at Micro Lambda’s factory ensures peak performance. Alignment and compensation with the particular YIG oscillator can be maximized down to the component level. All drivers in this series provide input voltage regulators and compensation circuits to improve frequency drift. All voltages required by the YIG oscillator, except the heater inputs are supplied by the voltage regulators.

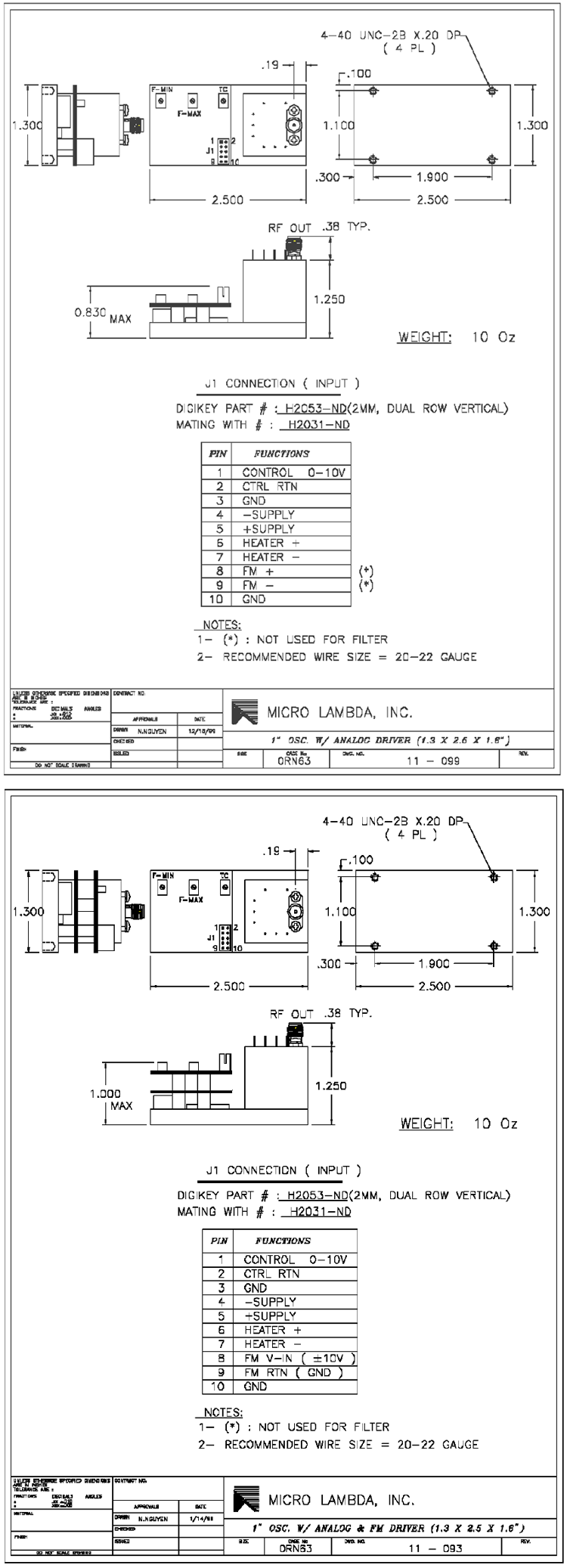

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont, CA 94538 * Tel: (510) 770-9221 * Fax (510) 770-9213 PDF Format Data Sheet and Outline Drawings Component Data Sheets: MLOM Series (Octave Bands) MLOM Series (Multi-Octave Bands) MLXM Series (Multi-Octave Bands)
