MLOM SERIES (MULTI-OCTAVE BANDS)
YIG TUNED OSCILLATORS
1" CUBE

FEATURES
.7-18 GHz Frequency Coverage
FM/Phase-Lock Port
Excellent Phase Noise
Superb Linearity
High Reliability


DESCRIPTION
MICRO LAMBDA MLOM-Series 1" square YIG Tuned Oscillators cover octave and multi-octave bands from .7 to 18 GHz for commercial applications. Utilizing Thin Film Technology for reliability and cost effectiveness, our standard oscillators are specified to operate from 0 to 650C. With proprietary designs on magnetic circuitry, oscillator circuitry and on coupling techniques, MICRO LAMBDA oscillator products offer excellent Tuning Linearity and Extended Tuning Bandwidth. Oscillators can be furnished with integrated or remote analog or digital drivers.

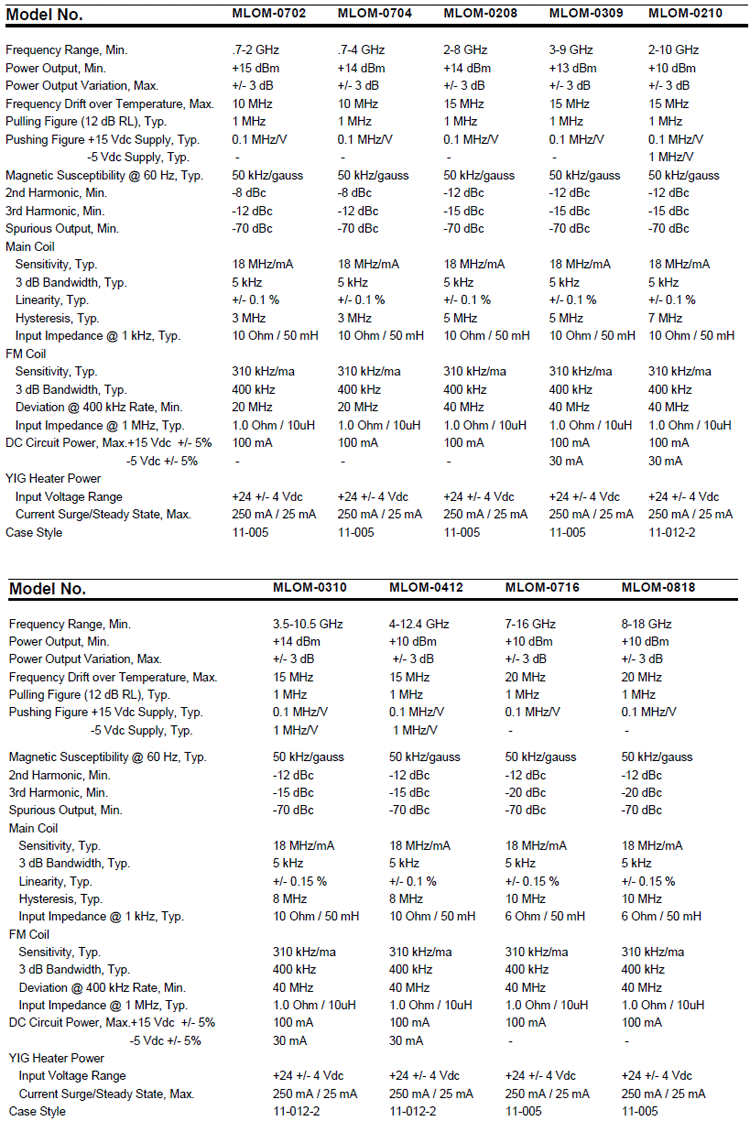

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at –0º to +65º C Case Temperature


Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

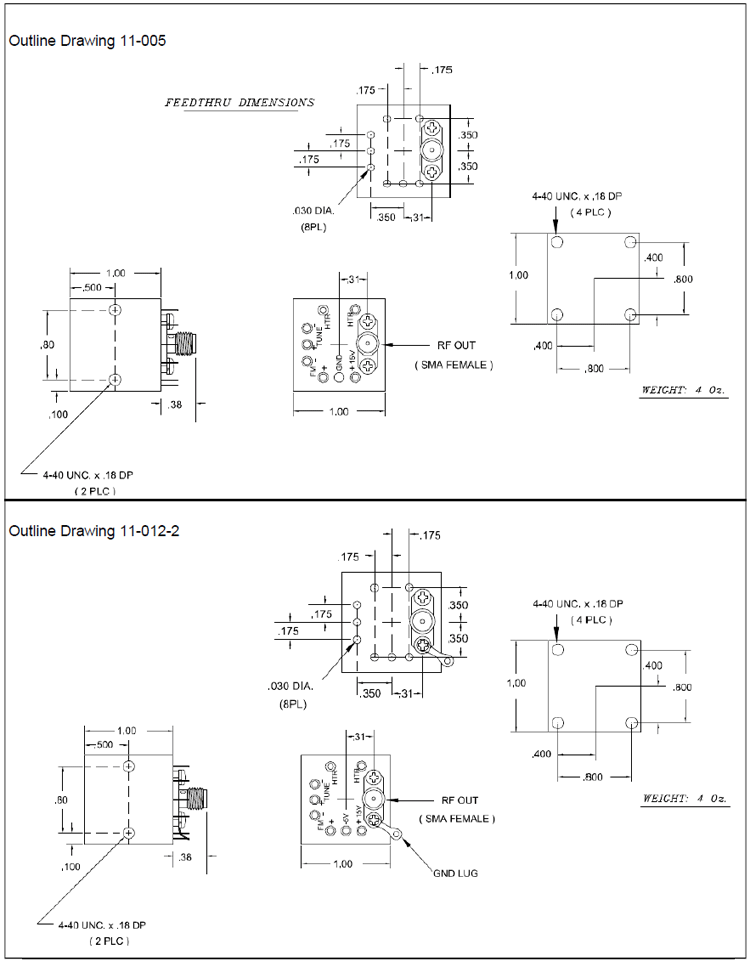

PDF Format Data Sheet and Outline Drawing
