DESCRIPTION
The MICRO LAMBDA MLFP-L Series line of 7-stage YIG bandpass filters provide high selectivity in a low profile 1.7"
package size. These filters offer excellent image rejection with customer selected 3 dB bandwidths. Standard frequency
bands include 6-18 GHz, 8-18 GHz, and 8-20 GHz frequency coverage with 3 dB bandwidths of 500 MHz.
These filters provide excellent linearity, low frequency drift and very flat 3 dB bandwidth response over the frequency
range. These filters are suited for very sensitive broadband receivers, down-converters and a variety of microwave
test equipment applications.

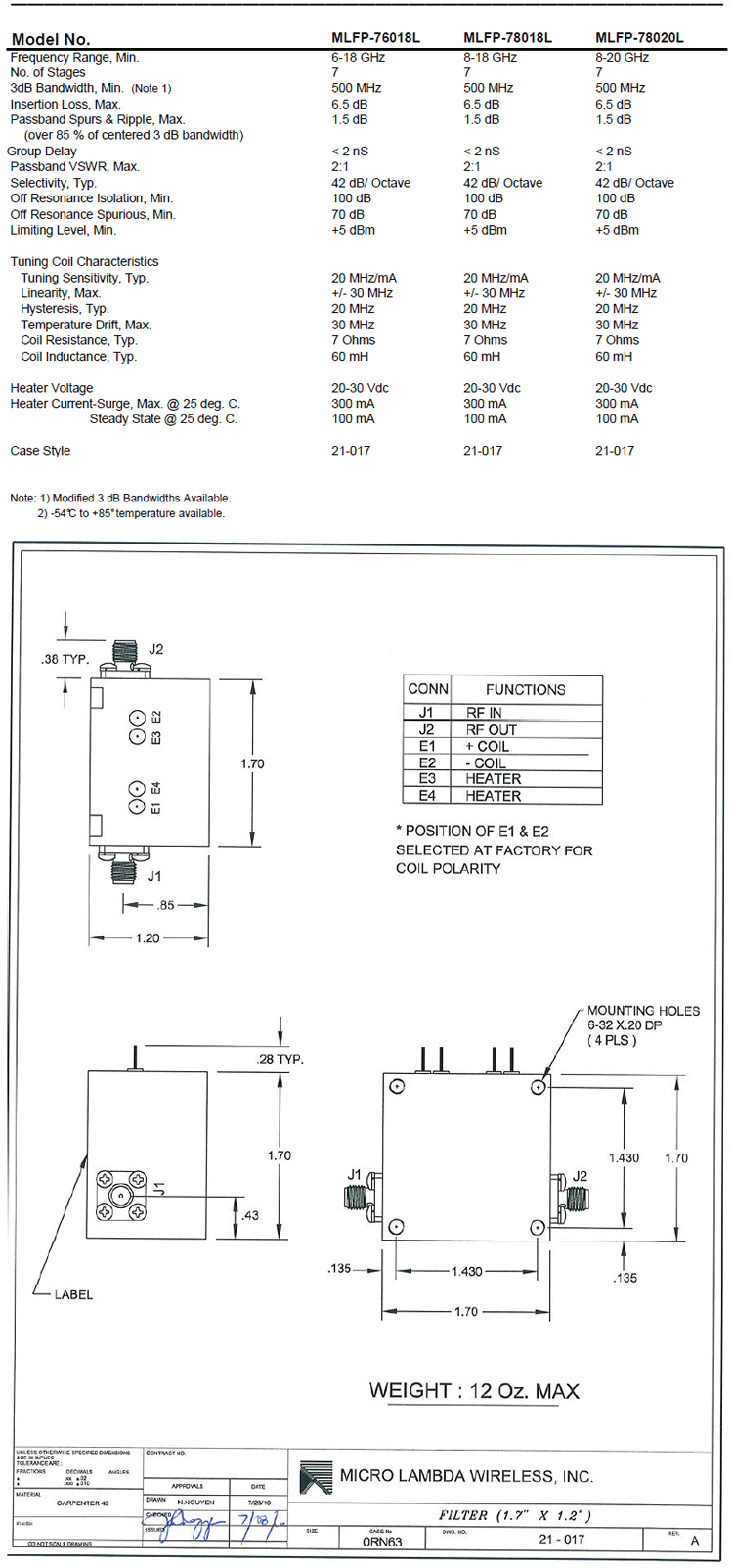

ELECTRICAL AND PERFORMANCE
SPECIFICATIONS
Guaranteed Specifications at 0º to +65º C Case Temperature (Note 2)
