	YIG TUNED FILTERS WITH COMMERCIAL SERIAL DRIVERS SD SERIES
FEATURES
500 MHz to 26 GHz Compensation for Temperature Drift Low-Profile Package Input Regulators for Improved Stability - Versus Power Supply Variations 16 Bit Tuning Resolution

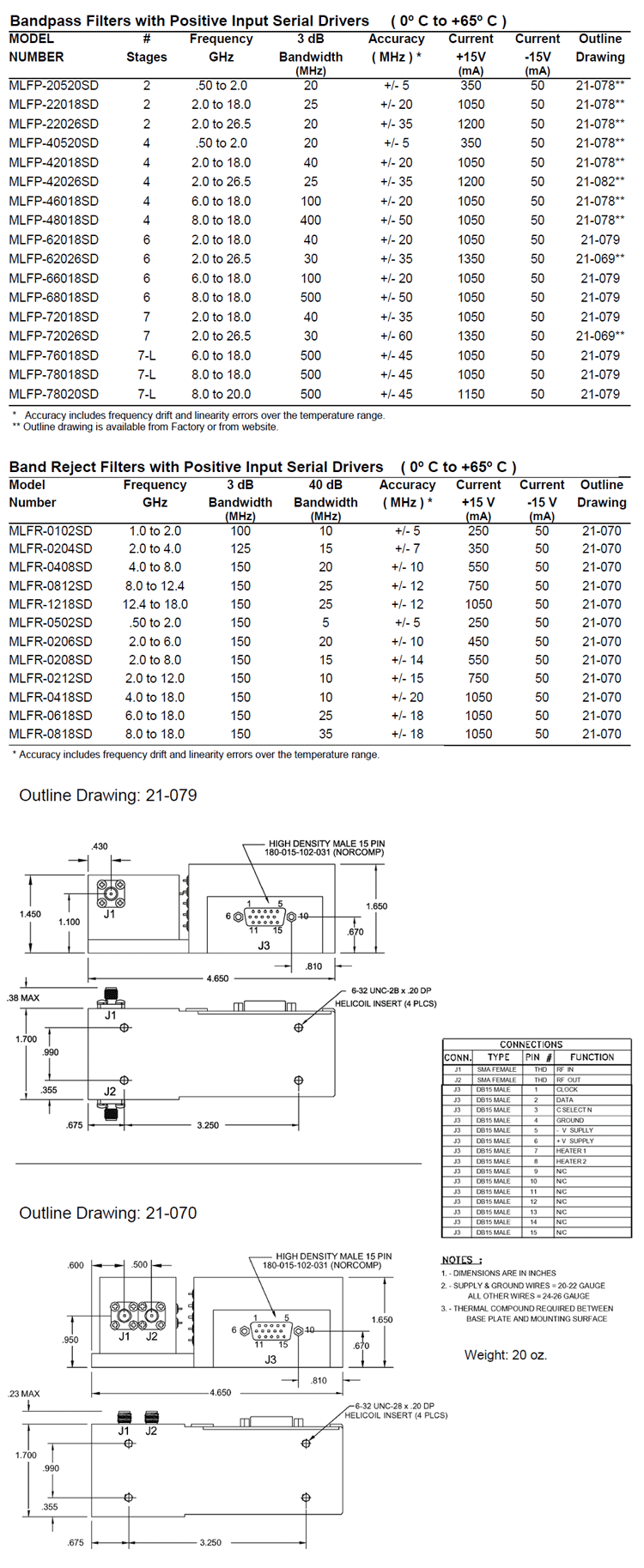

DESCRIPTION MICRO LAMBDA YIG Filters, model types MLFP Series and MLFR-series are available with integrated serial driver circuits. MICRO LAMBDA drivers eliminate the need for customers to design or develop their own driver circuits and sophisticated test and alignment procedures. Integrating a driver at MICRO LAMBDA’s factory ensures that peak performance will be achieved at the time of manufacture. Alignment and compensation with the particular YIG filter can be maximized down to the component level. All drivers in this series provide input voltage regulators, and compensation circuits to improve frequency drift. Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213 PDF Format Data Sheet and Outline Drawing Component Data Sheets: MLFR Series Octave Band     MLFR Series Multi-Octave Band     MLFR Series Wide Band     MLFR Series Ultra Notch MLFP Series (2-Stage)     MLFP Series (4-Stage)      MLFP Series (6-Stage)     MLFP Series (7-Stage) MLFP-L Series (7-Stage)
