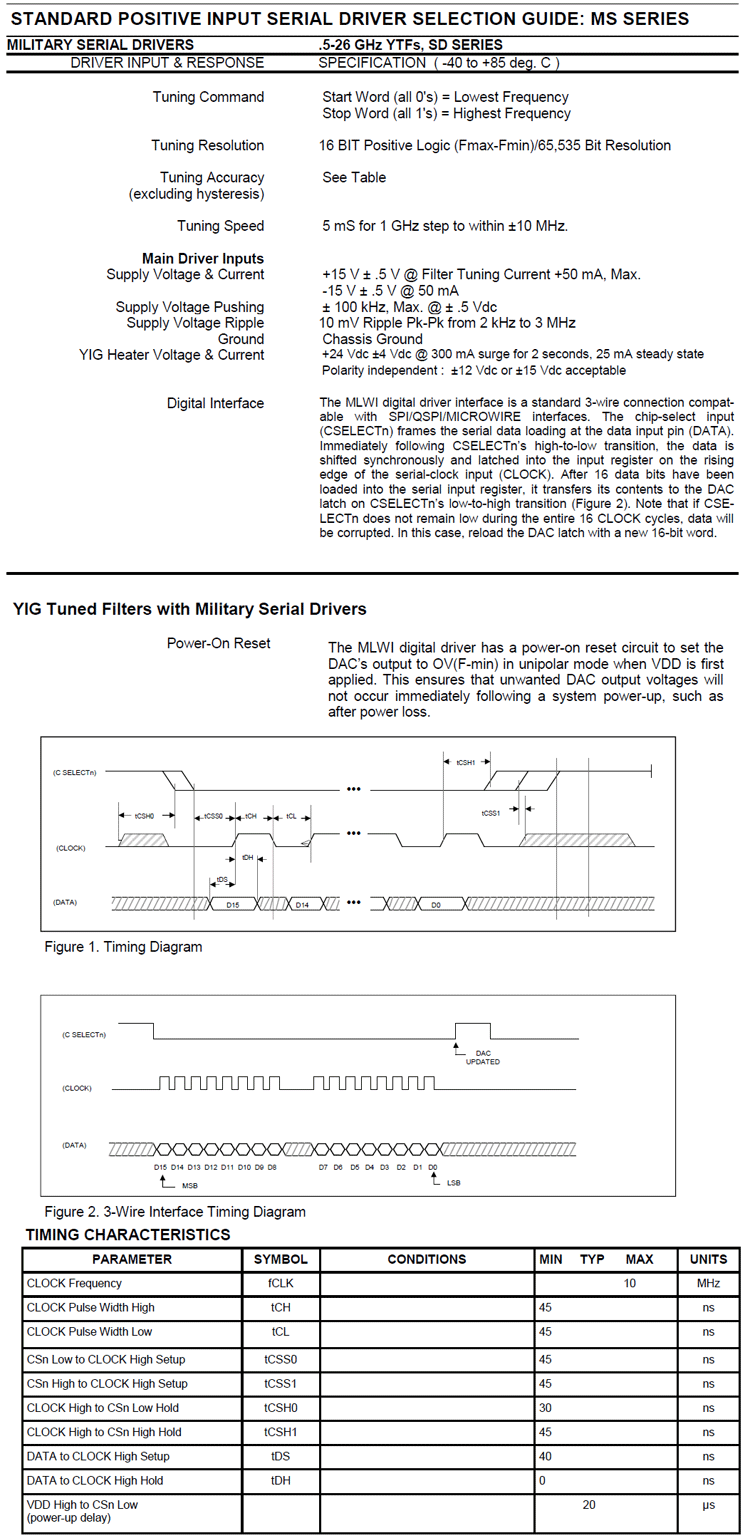

MILITARY SERIAL DRIVERS
MS SERIES
- 500 MHz to 26 GHz
- Compensation for Temperature Drift
- Low-Profile Package
- Input Regulators
for Improved Stability
- Versus Power Supply Variations - 16 Bit Tuning Resolution
DESCRIPTION

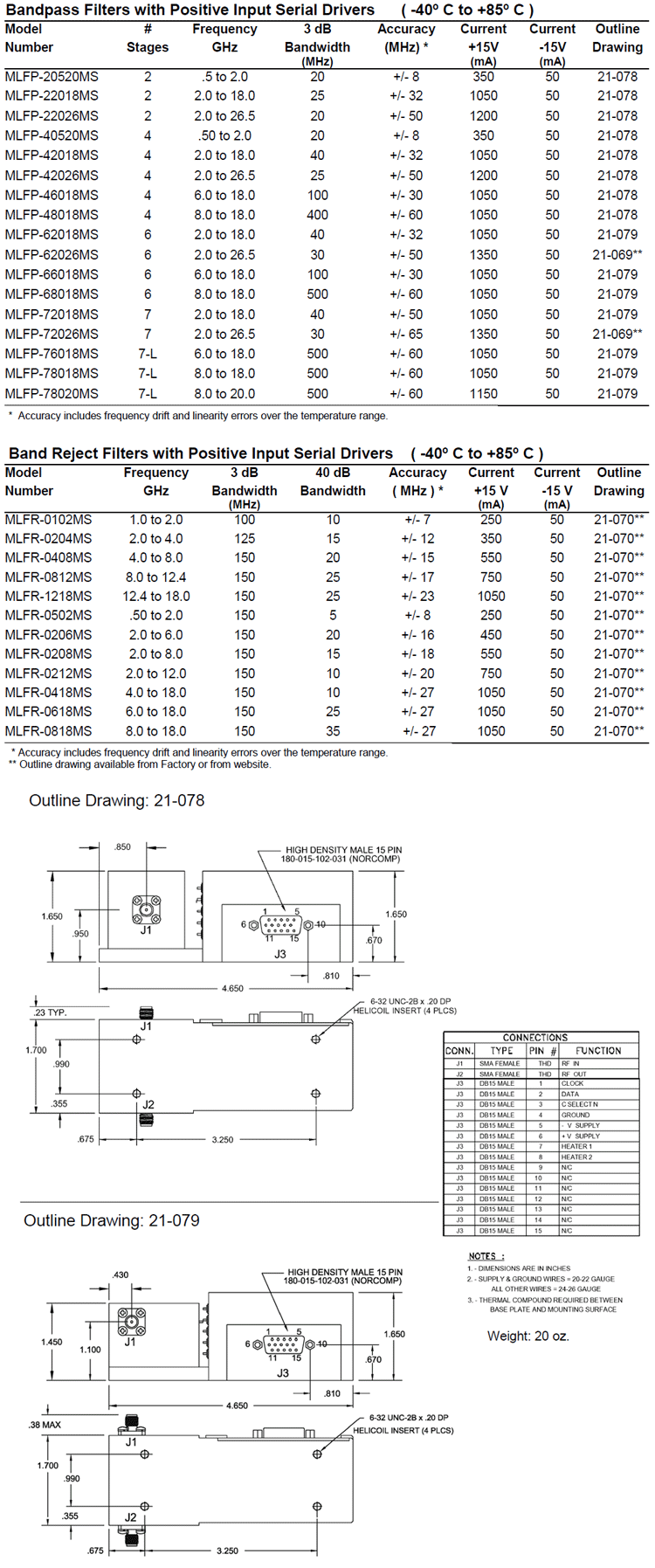

MICRO LAMBDA YIG Filters, model types MLFP Series and MLFR-series are available with integrated serial
driver circuits.
MICRO LAMBDA drivers eliminate the need for customers to design or develop their own driver circuits and sophisticated test and alignment procedures. Integrating a driver at MICRO LAMBDA’s factory ensures that peak performance will be achieved at the time of manufacture. Alignment and compensation with the particular YIG filter can be maximized down to the component level.
All drivers in this series provide input voltage regulators, and compensation circuits to improve frequency drift.
