DESCRIPTION
The MICRO LAMBDA MLFR-Series of Band Reject filters cover the frequency range of 4 GHz to 18 GHz. These filters
offer excellent notch depth and precise bandwidths for rejection of unwanted signals. Standard frequency bands
of 4 GHz to 18 GHz, 6 GHz to 18 GHz and 8 GHz to 18 GHz are provided. 3 dB bandwidths of 150 MHz with 40 dB
bandwidths of 30 to 50 MHz are available in standard designs. These filters are well suited for broadband receivers
and a variety of EW system applications. Standard configuration of 1.4" cubes are provided and can also be ordered
with an Analog, Digital or Serial Driver.

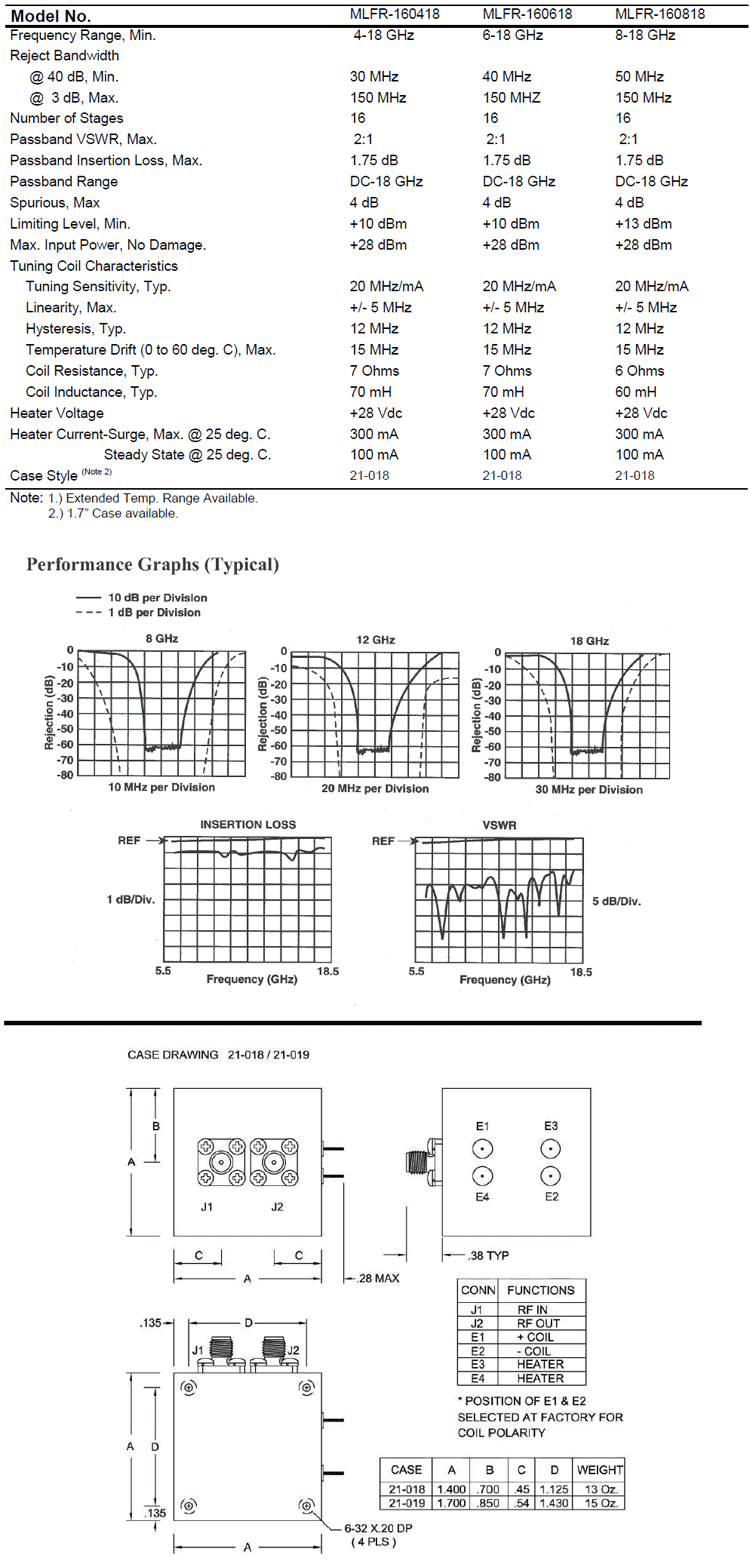

ELECTRICAL AND PERFORMANCE
SPECIFICATIONS
Guaranteed Specifications at -0º to +65º C Case Temperature (Note 1)
Micro Lambda Wireless,
Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221
* Fax (510) 770-9213
PDF
Format Data Sheet and Outline Drawing
Request
for Quote Form
Drivers:
Commercial Analog Drivers (PA Series) Commercial Digital Drivers (PD Series) Commercial Serial Drivers (SD Series)
Military Digital Drivers (MD Series) Military Serial Drivers (MS Series) |
