DESCRIPTION
The MICRO LAMBDA MLFR-Series of Band Reject filters cover the frequency range of 2 GHz to 18 GHz. These filters
offer excellent notch depth and precise bandwidths for rejection of unwanted signals. Standard frequency bands
of 2 GHz to 4 GHz, 4 GHz to 8 GHz , 8 GHz to 12 GHz and 12 GHz to 18 GHz are provided. 3 dB bandwidths from
100 MHz to 150 MHz with 40 dB bandwidths of 10 to 25 MHz are available in standard designs. Modified 3 dB and 40
dB bandwidths are available on special order. These filters are well suited for broadband receivers and a variety of
EW system applications. Standard configuration of 1.4" cubes are provided and can also be ordered with an Analog
or Digital Driver.

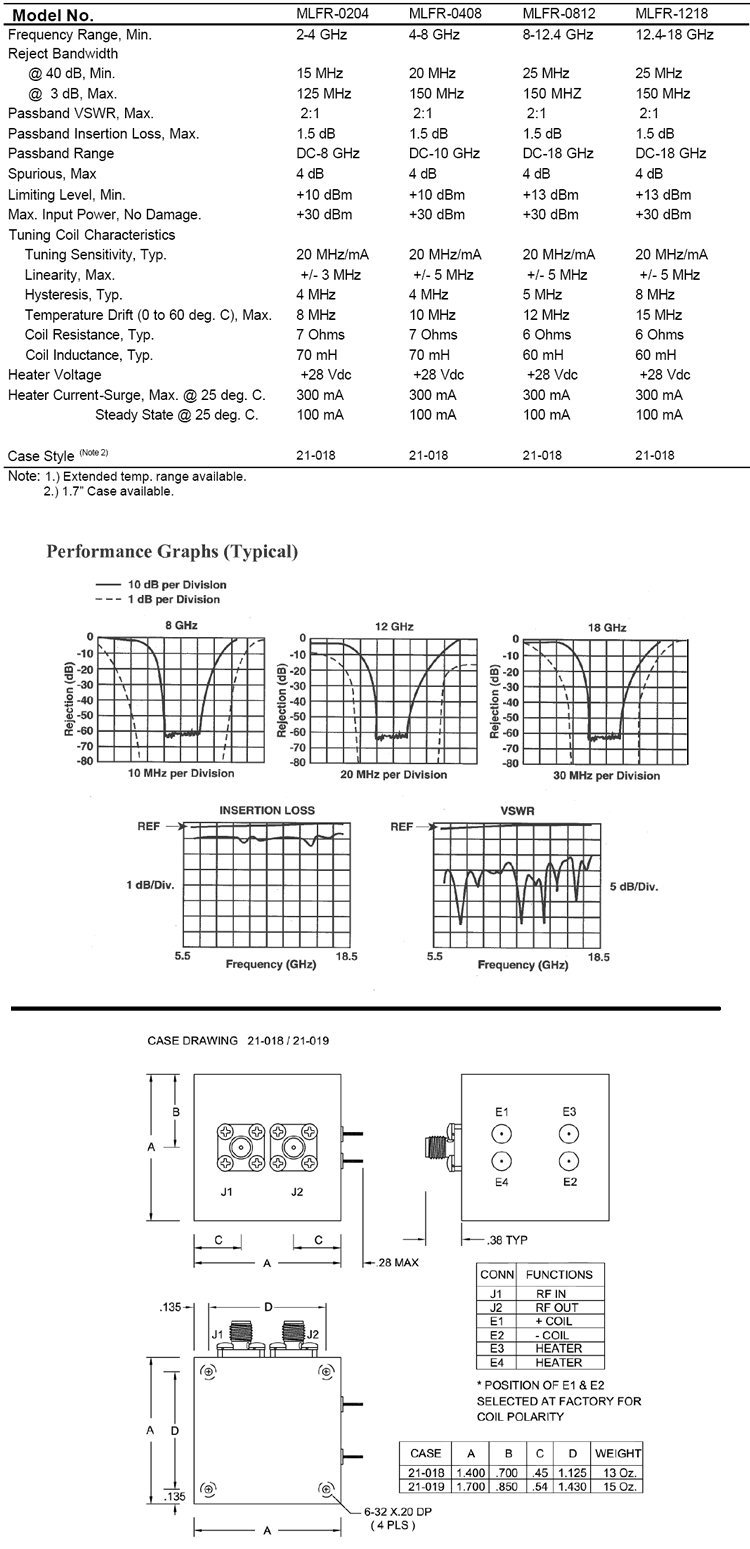

ELECTRICAL AND PERFORMANCE
SPECIFICATIONS
Guaranteed Specifications at -0º to +65º C Case Temperature (Note 1)
