DESCRIPTION
The MICRO LAMBDA MLFR-Series of Band Reject filters cover the frequency range of 2 GHz to 18 GHz and 2 GHz
to 20 GHz. These filters offer excellent notch depth and precise bandwidths for rejection of unwanted signals. 3 dB
bandwidths are 150 MHz with 40 dB bandwidths of 5 to 10 MHz are available in standard designs. Modified 3 dB and
40 dB bandwidths are available on special order. These filters are well suited for broadband receivers and a variety of
EW system applications. Standard configuration of 1.4" cubes are provided and can also be ordered with an Analog,
TTL Digital or Serial Driver.

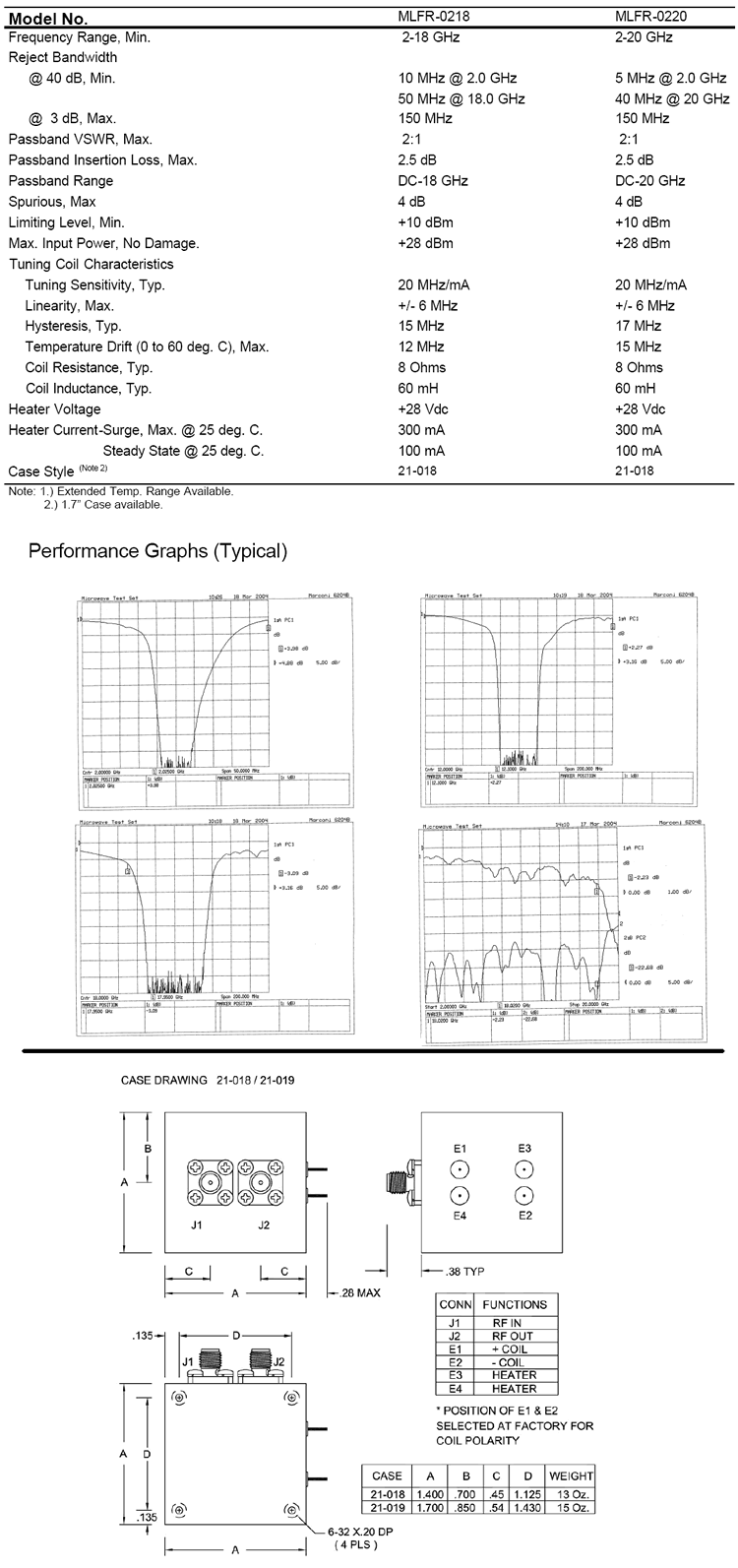

ELECTRICAL AND PERFORMANCE
SPECIFICATIONS
Guaranteed Specifications at -0º to +65º C Case Temperature (Note 1)
Micro Lambda Wireless,
Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221
* Fax (510) 770-9213
