1.0 INCH CUBE YTO
COMMERCIAL SERIAL DRIVERS
SD-SERIES

FEATURES APPLICATIONS
  • 700 MHz To 18 GHz
  • Compensation for Temperature Drift
  • Voltage Regulators for Improved Stability
  • 16 Bit Tuning Resolution

DESCRIPTION
Micro Lambda MLOM and MLXM Series 1” Cube YIG Oscillators are available
with integrated serial driver circuits. These drivers eliminate the need for customers to design or develop their own driver circuits and sophisticated test and
alignment procedures. Integrating a driver at Micro Lambda’s factory ensures
peak performance. Alignment and compensation with the particular YIG oscillator
can be maximized down to the component level.

Frequency Converters
Portable Test Equipment

All drivers in this series provide input voltage regulators, reverse voltage / dataline protection and compensation circuits to improve frequency drift. All voltages required by the YIG oscillator, except the heater inputs are supplied by the voltage regulators.



Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont, CA  94538 * Tel: (510) 770-9221 * Fax (510) 770-9213

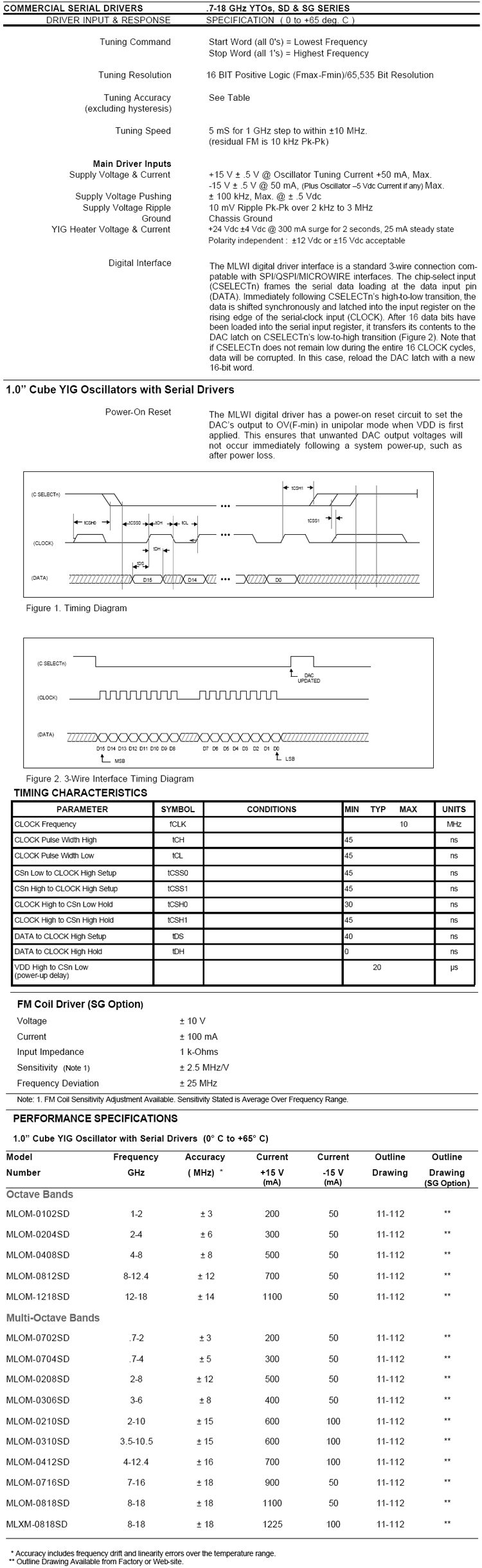

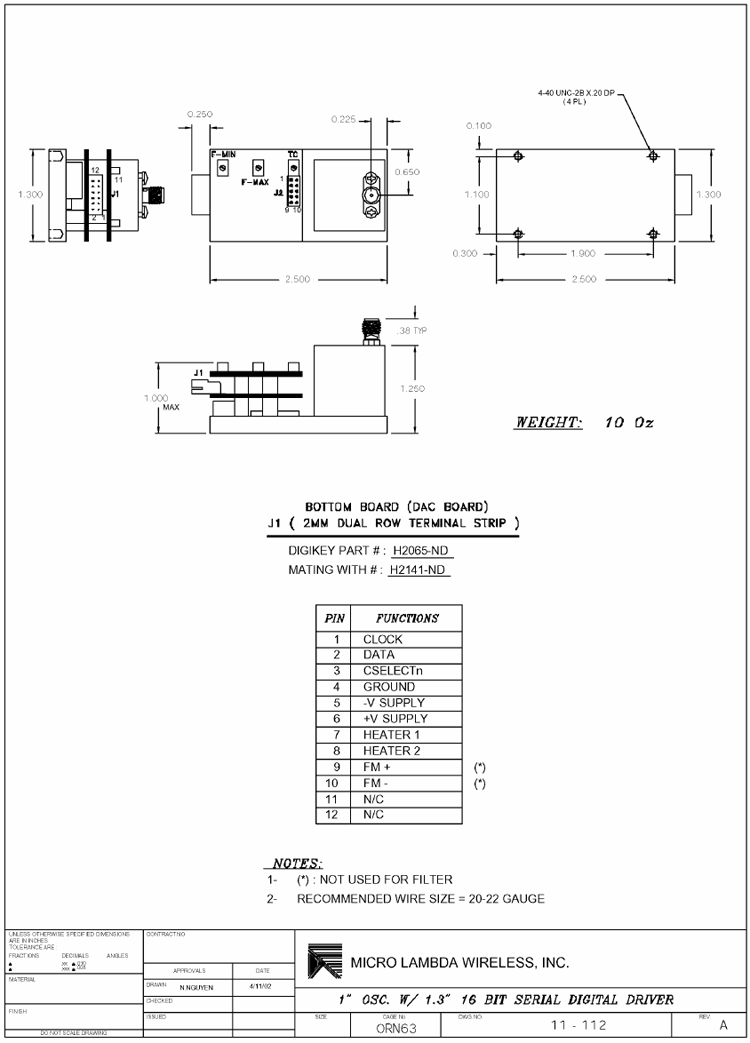

PDF Format Data Sheet and Outline Drawing

Component Data Sheets:
MLOM Series (Octave Bands)     MLOM Series (Multi-Octave Bands)     MLXM Series (Multi-Octave Bands)
