MLFR SERIES ULTRA NOTCH
YIG BAND REJECT FILTERS
6-12 GHz

FEATURES
  • 6-12 GHz Frequency Coverage
  • Excellent Linearity
  • 1.4” Cube Package
  • Up to 16 Stages

DESCRIPTION

The MICRO LAMBDA Ultra Notch Series of Band Reject filters cover the frequency range of 6-12 GHz. These filters offer very deep notch depth and precise bandwidths for rejection of unwanted signals. Standard frequency bands of 5.9-6.4 GHz, 7.9-8.4 GHz and 8.9-9.6 GHz are provided. 3 dB bandwidths of 300 MHz with 40 dB bandwidths of 70 MHz are available in standard designs.

These filters are well suited for broadband receivers and a variety of EW system applications. Standard configuration
of 1.4" cubes are provided and can also be ordered with an Analog or Digital Driver.

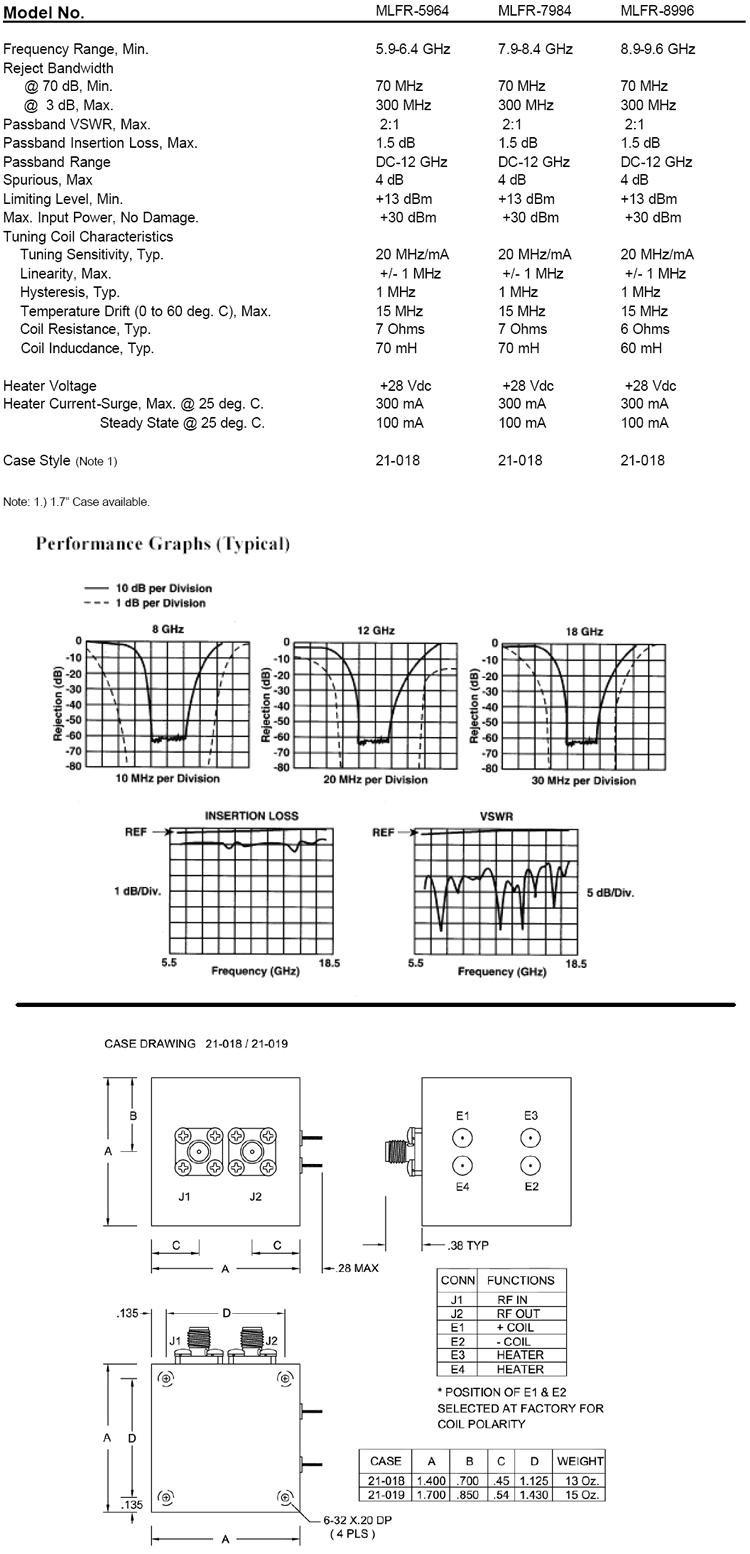

ELECTRICAL AND PERFORMANCE SPECIFICATIONS
Guaranteed Specifications at -0º to +65º C Case Temperature

Micro Lambda Wireless, Inc. - 46515 Landing Parkway, Fremont California 94538 * Phone (510) 770-9221 * Fax (510) 770-9213

PDF Format Data Sheet and Outline Drawing

Request for Quote Form

Drivers:
 Commercial Analog Drivers (PA Series)     Commercial Digital Drivers (PD Series)     Commercial Serial Drivers (SD Series)
Military Digital Drivers (MD Series)     Military Serial Drivers (MS Series)
