FEATURES

• 2 GHz To 22 GHz
• Compensation for Temperature Drift
• Voltage Regulators for Improved Stability
• 16 Bit Tuning Resolution

DESCRIPTION
Micro Lambda MLPM and MLPW Series Permanent Magnet YIG Oscillators are available with integrated serial driver circuits. These drivers eliminate the need for customers to design or develop their own driver circuits and sophisticated test and alignment procedures. Integrating a driver at Micro Lambda’s factory ensures peak performance. Alignment and compensation with the particular YIG oscillator can be maximized down to the component level.

All drivers in this series provide input voltage regulators and compensation circuits to improve frequency drift. All voltages required by the YIG oscillator, except the heater inputs are supplied by the voltage regulators.

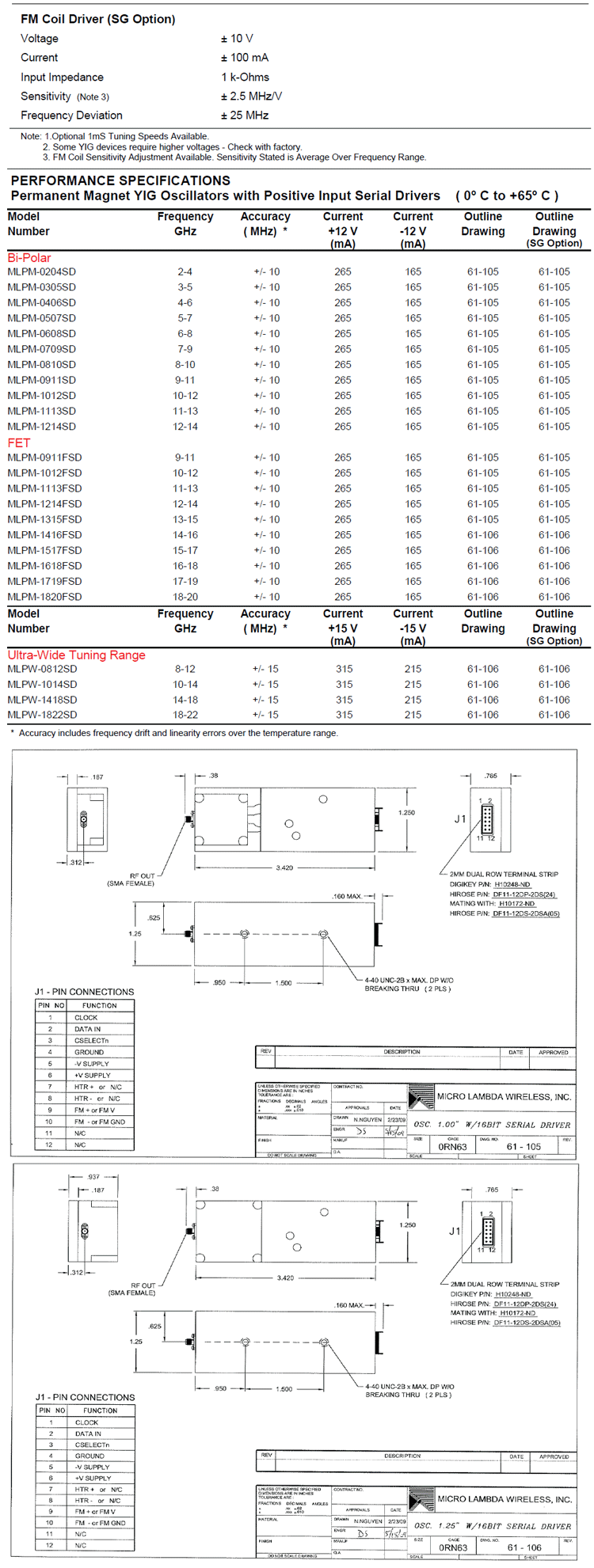

PDF Format Data Sheet and Outline Drawings

Component Data Sheet:
MLPM Series (Bi-Polar)      MLPM Series (FET)     MLPF Series     MLPW Series
